Truck quality monitor with sun shield and audio
1, 2, 3 or 4 camera + Picture in Picture option


Complete modular mix and match system.

1) choose if you want one, two, three or four cameras,
2) choose if you need a spiral connector (or two)
3) choose how many meters of cabling you need for each camera

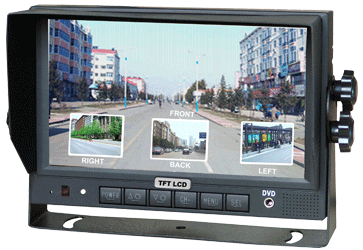

7 Inch digital color LCD monitor with built-in quad.
Single, dual , triple , quad image and PIP functions available.
Support four camera inputs, the power output from the monitor is 4X300mA.
The mirror function for each camera could be set separately.
Auto scanning and timed image switch.
The display effect and volume can be set separately for each camera.
Operate from 12~32V.
Camera’s name can be set up: 8 characters the longest.
Four trigger wires for cameras.
Once the trigger wire is activated, image switches to the relative camera automatically.
With trigger wire for dual picture, the relative cameras can be combined optionally.
The priority of quad picture and dual picture could be set up.

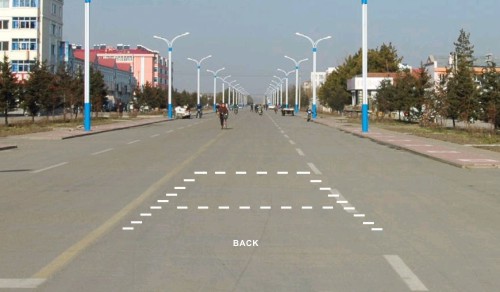

Backup distance grid & left/right turning indicator arrow are available.
The boot-strap display can be set as your perfect display mode.
The monitor auto switches to the working channel.
Applicable for both the indoor/outdoor security system and vehicle rear view system.
One DVD AV input and two video outputs.
Mainly applicable for the vehicle & public surveillance system.
Fresh and multi-functions, easy and convenient in installation and operation.

Resolution            800 x 3 (RGB) x 480
Contrast                500:1
Brightness             400 cd/m
Viewing Angle       U: 50 / D: 60   R/L 70
Response Time:    Tr:  5ms;  Tf 20ms
Power input:          10 - 32V
Video input            4 inputs
Audio input            4 inputs
Trigger signal        3 trigger wires
Anti-vibration         7g  U bracket






Rear Panel :

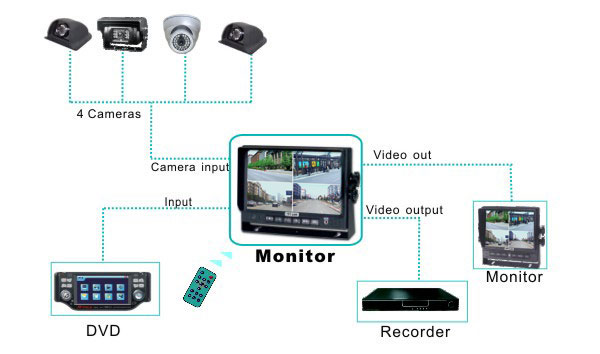

     Connection Diagram:

    Electronic label:


Product Accessories:
Front panel AV input adapter
Sun shield
U- support bracket (optional)
Base support optional)
AV and power supply conversion cable


Camera Options:
Bullet / Bumper Bar               Heavy Duty Truck / Van (avail in white)

Butterfly                                 Mini Bullet                      Heavy Duty Bullet

   Round Caravan

           Caravan                                                                                  Twin Caravan

Camera Options Model
Bullet / Bumper
H. D. Truck (with audio)
Mini Bullet
Heavy Duty Butterfly
Caravan Round
Twin Caravan Camera


This heavy duty 3 in 1 cable carries audio / video and power and of course has fully waterproof connections making it ideal for cars, 4WD, trucks, caravans, horse floats etc.4 Pin Cables

  When sent with above
7.5M Single (most cars)                       (single camera system)
7.5M Twin Cable (most cars)               (twin camera system)
10M Cable  (smaller caravan / trailer) (single camera)
15M Cable  (standard caravan)          (single camera)
15M Twin Cable                          (two cameras placed on caravan or truck)
20M Cable   (truck)                           (single camera)
Spiral Single Cable    (One camera on caravan / trailer / truck)
Spiral Twin Cable      (Two cameras on the caravan / trailer / truck)
Spiral Triple Cable      (Three cameras on the caravan / trailer / truck)
Integrated Parking sensors
