BI080

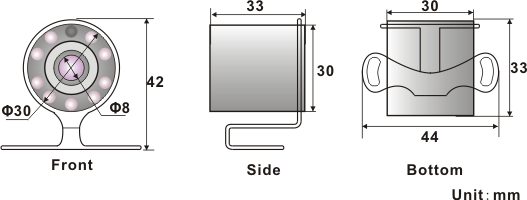

MINI BULLET CAMERA

Waterproof and weather resistant housing for outdoor use
Compact size
Easy to install

	CMOS	CCD
IMAGE DEVICE	OV7950	SHARP
SYSTEM	NTSC	NTSC
EFFECTIVE PIXELS	510 X 491 PIXELS	512 X 492
SENSING AREA	4.69MM X 3.54MM	4.9MM X 3.7MM
SCANNING SYSTEM	2:1 INTERLACE	2:1 INTERLACE
SYNC SYSTEM	INTERNAL	INTERNAL
RESOLUTION	380 TV LINES	420 TV LINES
HORIZONTAL FREQ	17.734	15.734
VERTICAL FREQ	60HZ	60HZ
MIN ILLUMINATION	3 LUX / F 2.0	0 LUX / F 1.2
VIDEO OUTPUT	1.0V 75 Ohm	1.0V 75 Ohm
GAMMA CONSUMPTION	0.45	0.45
AGC	AUTO	AUTO
S/N RATIO	BETTER THAN 48DB	BETTER THAN 48DB
WHITE BALANCE	AUTO	AUTO
ELECTRONIC SHUTTER	1/15,000 SECOND	1/10,000 SECOND
BLC	AUTO	AUTO
CURRENT CONSUMPTION	100MA	100MA
POWER SUPPLY	12v	12v
OPERATING TEMP	-10C - 46C RH95% MAX	-20C - 70C RH95% MAX
STORAGE TEMP	-30 - 60C RH95% MAX	-40 - 80C RH95% MAX
LENS	f=2.1mm / F=2.0	f=3.8mm / F=2.0
LENS ANGLE	110 DEGREES	92 DEGREES

4 pin cabling

This heavy duty 3 in 1 cable carries audio / video and power and of course has fully waterproof connections making it ideal for cars, 4WD, trucks, caravans, horse floats etc.4 Pin Cables

	When sent with above
7.5M Single (most cars) (single camera system)	$20
7.5M Twin Cable (most cars) (2M Split) (twin camera system)	$30
10M Cable (smaller caravan / trailer) (single camera)	$25
15M Cable (standard caravan) (single camera)	$30
15M Twin Cable (2M Split) (two cameras placed on caravan or truck)	$40
20M Cable (truck) (single camera)	$35

7.5M 4Pin to RCA Cable (inc power wire) for existing RCA monitors	$12.50
F - F RCA adapter for above cable if your unit has female connector	$1.50
4Pin - Male RCA Cable (500mm) To use this camera on existing RCA wiring	$5.00

Woza Single Cable (one camera on caravan / trailer / truck)	$95
Woza Twin Cable (two cameras on the caravan / trailer / truck)	$110
Woza Triple Cable (three cameras on the caravan / trailer / truck)	$130

Single Woza Cable Twin Woza Cable
