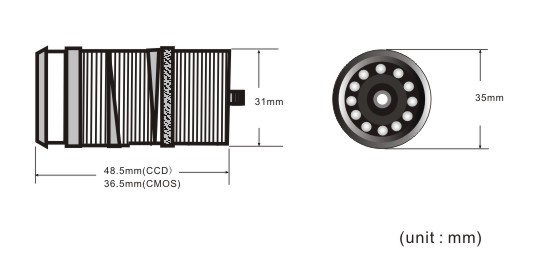

Image Device SHARP
TV system NTSC
Effective Area 510 x 492 pixels
Sensing Area 4.9mm x 3.7mm
Scanning System 2.1 Interlace
Resolution 420 Lines
Horizontal Sync Frequency 15.734 Khz
Vertical Sync Frequency 60 Hz
Video Output 1.0vp-p, 75 Ohm
Gamma Consumption 0.45
AGC Auto
S/N Ratio Better than 48db
White Balance Auto
Electronic Shutter 1/60~1/10,000 Seconds
BLC Auto
Current Consumption 300mA
Power Supply DC12V
Operating Temperature -20°C~70°C , RH95%
MAX Storage Temperature -40°C~80°C,RH95%
MAX Lens f=3.6mm / F = 2.0
Lens Angle 92°

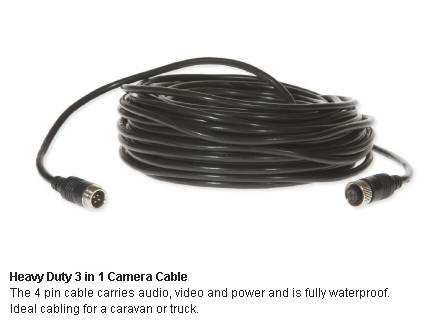

4 pin cabling

This heavy duty 3 in 1 cable carries audio / video and power and of course has fully waterproof connections making it ideal for cars, 4WD, trucks, caravans, horse floats etc.4 Pin Cables

  When sent with above
7.5M Single (most cars)                       (single camera system)
7.5M Twin Cable (most cars)  (2M  Split)       (twin camera system)
10M Cable  (smaller caravan / trailer) (single camera)
15M Cable  (standard caravan)          (single camera)
15M Twin Cable  (2M  Split)            (two cameras placed on caravan or truck)
20M Cable   (truck)                           (single camera)
7.5M 4Pin to RCA Cable (inc power wire)  for existing RCA monitors
F - F  RCA adapter     for above cable if your unit has female connector
4Pin - Male RCA Cable   (500mm) To use this camera on existing RCA wiring
Woza Single Cable    (one camera on caravan / trailer / truck)
Woza Twin Cable      (two cameras on the caravan / trailer / truck)
Woza Triple Cable      (three cameras on the caravan / trailer / truck)

     Single Woza Cable                                                                                Twin Woza Cable
