The screen is basically a slave


Generic Install hints and tips

Plug and play stereos have never had a specific user manual, nor an install manual.

The factories have adopted the same position as mobile phone manufacturers and so they do not provide a user manual.  They want for you to try everything.

If you are unsure on how to install the stereo then it is recommended that you either check YouTube or similar else to see how to remove the factory stereo.   Once removed the wiring is very much a matter of plug it all in.   In some vehicles not all factory cables are used.  If unsure please send a picture of the back of the  original factory stereo without any cables to sales@brashimports.com.au
Setting up the CANBUS Module

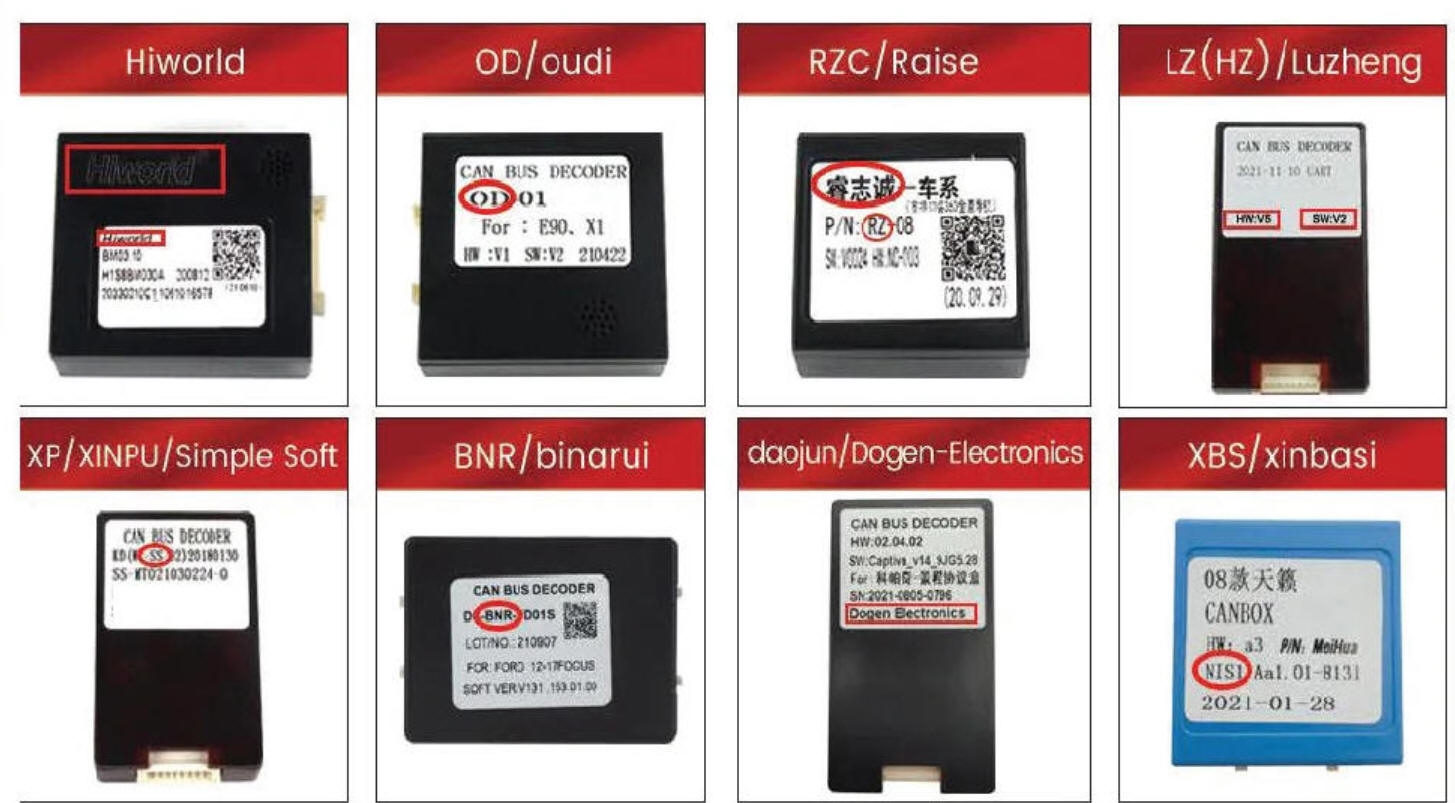

 IF your car uses CANBUS an module as pictured below will be provided .  Not all cars use this. There are 8 possible CANBUS modules commonly available.  It is important to know which you have and perhaps take a photo before installing.  The RZC/Raise is the most common, followed by HiWorld and XP


There are a few versions of the hardware and so please check the links below and set this up.  If your exact model car is not listed (and in some cases even if it is) you may need to test every option as long as you have selected the correct CANBUS and Car model.  If you have selected correctly your steering will work.  Depending on the model of your vehicle it may also display climate control, turn on the amplifier and power the camera.

G30 https://www.youtube.com/watch?v=dYEcR3XXZjU
G40 https://www.youtube.com/watch?v=0owuNkZMLjE


Manual
Stereos like mobile phones do not come with manuals in most cases but there is a fairly good generic one at https://www.dropbox.com/scl/fi/6fo05qbvfiovtliz3x96w/8581manual.pdf?rlkey=na8w44m5pk5yxa4c1vod6ra8u&st=hatmj51p&dl=0 7




Cabling with CANBUS

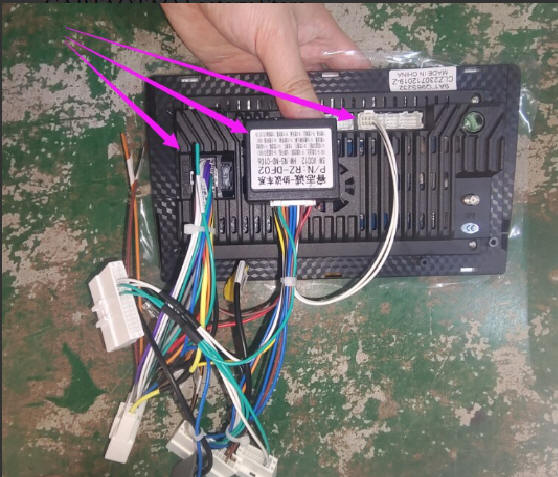

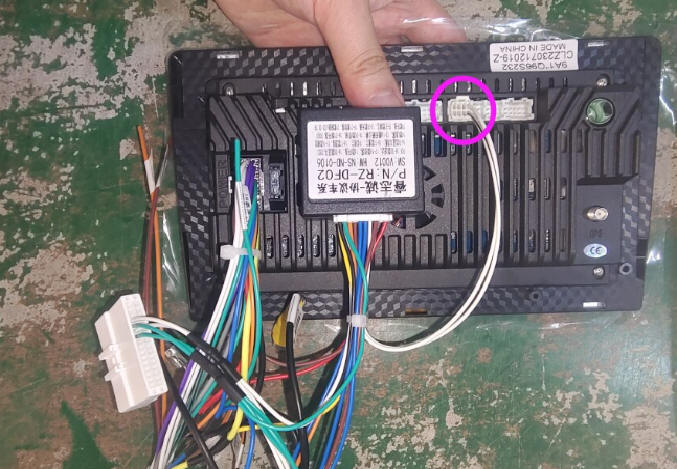

Make sure this plug below is connected.




Steering Controls.
If you car stereo did not need a CANBUS then the steering needs to be programmed for your car.  Please check videos showing how to program.

G30 https://www.youtube.com/watch?v=1RKdomB6vvw

G40 https://www.youtube.com/watch?v=SfTqVJe74wA

In some instances some buttons will not be able to be re-mapped.  As some cars use external modules for Bluetooth it may be that the phone and voice buttons cannot be mapped.  Most commonly this effects some Mazda and Nissan D40.

Mapping:
Android stereos are capable of running many different GPS programs - available at the Google Play Store
If you would like to download IGO (worlds most popular) there is a link at https://brashimports.com.au/IGO.htm
Importantly at the top of this page there is an option to purchase the mapping on USB for $40 with the extra benefit of
access to lifetime map updates as well as Off Road 4x4 mapping and some other programs - The decision to do this is yours.


GPS Antenna:
These are made to be placed flat side down on the dashboard and the best spot seems to be on the dash in front of the passenger.  Some installers will leave it under the dash (as it is easier for them) and it may work quite well but it may over tax the internal signal amplifier.   Do NOT attach it to the windscreen as this will make it upside down and put a strain on the signal amplifier built into the GPS receiver.


Microphone:
 The best placement for this is not on the pillar (although some people believe it looks better) but rather just near the drivers mouth mounted above the side window or better still on the roof above the driver or on the steering column in front of the instruments.  You / your installer may need to extend the cable.  Factory microphones can be tested with the unit but some may not work very well due to impedance differences.


 Microphone Troubleshooting:
Microphones in some cars can difficult due to a few factors including electronic noise from the dashboard, having the volume up too loud causing feedback.  There are only a few solutions to try.
  a) Make sure the external microphone is as close as possible to the drivers mouth
  b) There are microphone programs at the PlayStore.  https://play.google.com/store/search?q=microphone+amplifier&c=apps&hl=en&gl=US Which one will work the best obviously is subjective yet I am keen to hear from people who have tried any of these.
 c) Most aftermarket microphones will work and some brands believe their microphones are superior.  These have not been tested
 d) Ask for a replacement microphone as it could be simply a faulty one.

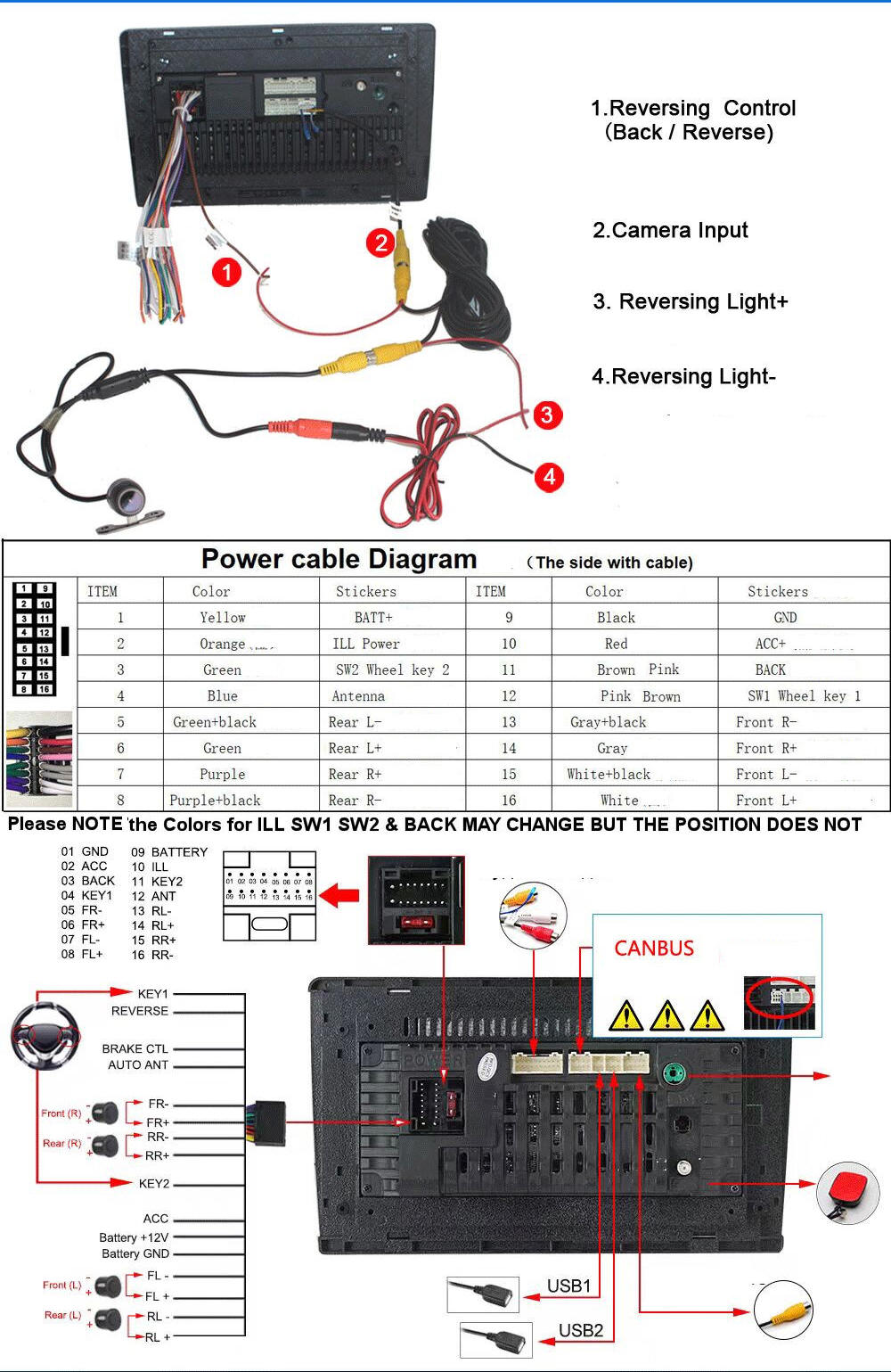

Cabling:
Not all cables supplied or vehicle cables may be needed and so if you have left over cables do no panic.  This is because some connectors are prewired for CD stackers or speed limiters.    If concerned please send a picture of the back of the factory stereo (not the cables) and advise which sockets show the unused cables.


Reversing Camera for vehicles without CANBUS box:

The stereo has a trigger wire on the main power loom.  When looking at the plug locate the Black wire, then next to it is Red (sometimes miscolored) and the next wire is the trigger.  It may be Pink, Brown or even labelled Back, CCD or Camera.   This wire needs to be connected to the power only when the car is in reverse.
The Reversing Camera: for vehicles supplied with a CANBUS module
If your stereo goes black in reverse then the unit is getting a reverse signal via the main plug on pin 11.  You can use this to power the camera using the red fly lead.  The camera will get its earth via the RCA.  If using this method please ensure the bare wire at the back of the car is terminated else it could short out.  If your car is diesel do NOT earth the camera unless you use the filter.

There is a video showing how to do this for SOME models at https://tinyurl.com/y45abxhc and so the methodology may be the same but the wiring may be different. Please note if your wiring looks different please contact prior so you understand which are the trigger wires for your unit.


Camera Trouble Shooting:
Does the screen recognize the car is in reverse?
    No = Test the voltage on the trigger wire (described above) going into the unit.  It should be at least 10V
    Yes but the screen only goes black
            A) check to ensure the Yellow male RCA from the camera / power cable is connected to the female Yellow RCA of the stereo
            B) Does the car have CANBUS controlling the camera?
                  - No
                        a) Test the camera is being powered.
                        b) Test continuity of the RCA cable.
                  - Yes
                        c) Would be rare but possible wrong adapter supplied - contact with images
        Yes but  the image is poor or black from new camera
                  The stereos are capable of displaying NSTC, AHD, Standard Analogue, PAL etc.
                  Depending on the firmware of your stereo are 2 videos showing how to change the selection
                        https://www.youtube.com/watch?v=MQ3WSlAJR8Y
                        or
                        https://www.youtube.com/watch?v=x2l8Cqv0GZw
                   If your car is Diesel powered then take the earth off the camera.

        Yes but the image is poor or black from factory camera
                  The stereos can only display the output coming from the camera but in some instances the image is poor.  This is evident mainly evident where the
                    factory screen is low resolution.  It is akin to installing a high performance engine and expecting it work with E10 fuel.
                  The other issue with poor resolution can come with Diesel powered engines. Diesel cars put out more electronic noise around the vehicle and especially
                    the dashboard and this can effect the electronics of the new screen.  This may effect not only the camera but also Bluetooth and Wifi.



 Antenna adapter:
If you are supplied antenna adapter which has a blue loose wire this will need to be powered.  Your harness may have a loose wire at pin no 12. This is to be connected to the Blue wire antenna. You will know if it is connected correctly by testing it on AM radio (if equipped).

Radio Reception Trouble Shooting
If you believe radio reception is poor test the AM.  AM radio needs a proper antenna connection - whereas FM can work with a coat hanger.
If no reception on AM then the antenna is not being powered or the adaptor is faulty or incorrect or something wrong with the connection.  If the antenna has a blue wire test this to make sure it has 12V.  To check to see if the correct antenna was supplied please go to https://aerpro.com/ and in the "What fits my car" select your vehicle and compare the antenna type you should have.


Apple Carplay / Android Auto

If you have selected this option from the drop down menu then there will be an app on the stereo unit called ZLink (or possibly Appkit or Carlink)
For wired Carplay you need to use a genuine cable.  If your is wirelessly equipped for Carplay / Android Auto this is done by connecting your phone to the unit via Bluetooth


When you select CarLink / Zlink for Apple Carplay/Android Auto all the other applications will naturally stop including the AM/FM radio and so I always recommend Radioapp program    from the App Store or Google Playstore.  This will give you very high AM / FM for nearly every station across Australia.    This app can be used from within with Carplay (I have not tried it with Android Auto)



 Digital Radio:
 If you have purchased this option then the program for this is held on the Digital Tuner itself
Go to the file manager and search for the USB drive and select the program by tapping on it and installing.

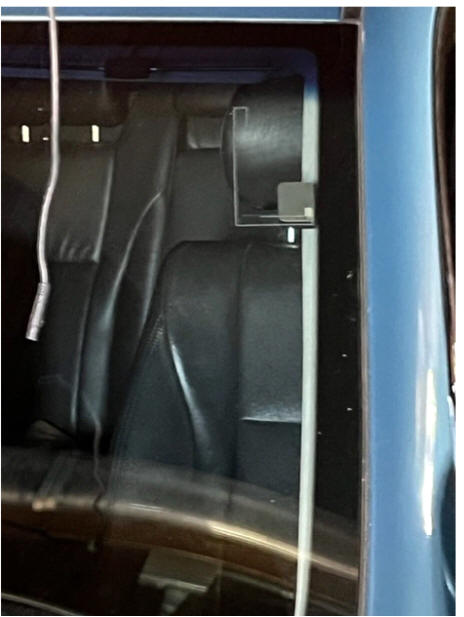

The antenna is to be placed slightly away from the side pillar.  After removing the plastic trim on the side pillar you MUST scrape the paint so that the antenna will be properly earthed.  Without this step your reception will be extremely limited or non-existent.


TPMS:
If you have purchased this option then the program for this is held on the USB receiver itself. On the File Manager select the USB which comes up when the TPMS is connected.  Install the APK file

DVR / Crash Camera:
 If you have purchased this option then the program for this is held on the DVR itself.  On the File Manager select the USB which comes up when the Dash Camera is connected and install the APK file.  You will also need to purchase a Micro / TF Card up to 32GB.  Most Dash Cameras will no recognize 64GB or higher.  It will automatically loop record.

ODB
 I have recently come across 2 programs for the ODB but not sure what they do etc.
 They can be downloaded at the links below.  The first one is quite small and so not sure if it is a demo version etc
 https://www.dropbox.com/s/sepe9jta5q6fnpf/Efficiency%20free.apk?dl=0
 https://www.dropbox.com/s/8v3dwqb2w2nbc05/DashCommand.ver.4.6.9.build.4939.apk?dl=0

 Passwords
 Common passwords are
8888
3368
1234
123456
888888
1617
0000
00000
000000

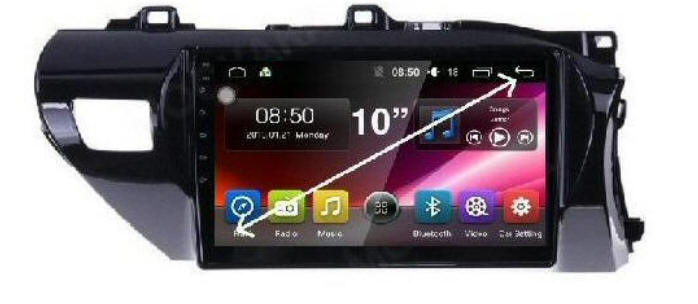

 Reseting the touch screen
 If something goes wrong with the touch screen it can be re-set.   Please follow the information at
https://brashimports.com.au/reset.mp4.  Your screen may be slightly different but essentially the same

Setting up a split screen:
 G30  https://youtu.be/nx-JWF8A81Y
G40

Turning off Hand Brake Detection:
 G30

G40






Trouble shooting - Restoring the screen back to factory
 If something goes wrong with the screen itself - including Bluetooth conectivity or reversing camera etc and it no longer performs as it did or should then it can be reset back to the factory settings.
If your stereo using a CANBUS interface then please take a photo of the settings.  Information for where the setting are is at the top of this page.

With the stereo on
Using a paperclip press the re-set button on the top left hand corner
If this does not restore the stereo back to where it should be operating then:
Remove the plug on the back or the earth from the car battery and leave overnight.
If this does not restore the stereo back then, following the link below restore the stereo.

G30 Screen https://youtu.be/26OcvqGIVCA
G40 Screen https://youtu.be/Yv318TA5bgc

 Bluetooth:
 Setting up Bluetooth is relatively easy but if you get stuck you can check these 2 videos
G30  https://www.youtube.com/watch?v=NR2hFZr62Tg
G40  https://www.youtube.com/watch?v=gg8D-YBaKvk



VEHICLE SPECIFIC NOTES

Vehicle Specific Notes

Mercedes / BMW / Audi


The fun bit for Mercedes / BMW / Audi – when using the CANBUS box
 Most vehicles have no problem at all – simple plug and play, but of course being European anything can happen….


There are 3 small modifications which may or may not need to be made


1) Accessories

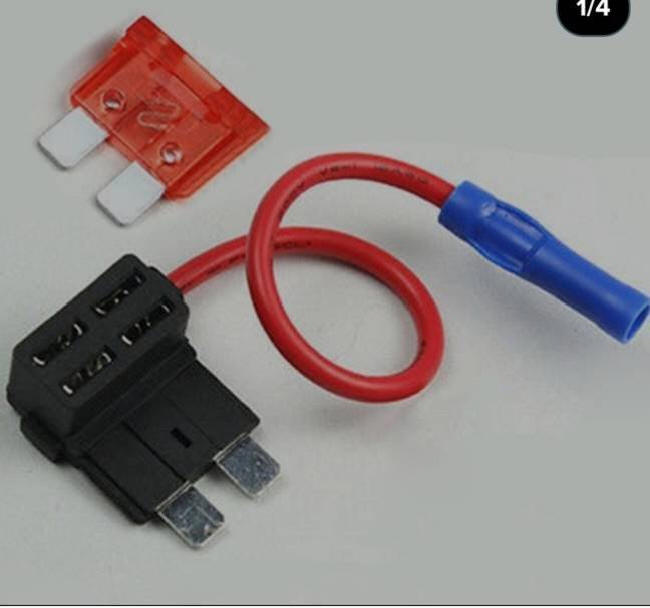

 The RED accessories wire may not get the trigger from the CANBUS module to turn the unit on.  This is fairly simple to bypass as the accessories can either be taken from the fuse box or more often from the cigarette lighter.   The red cable is CUT and a wire joined to the 12V accessories power source.

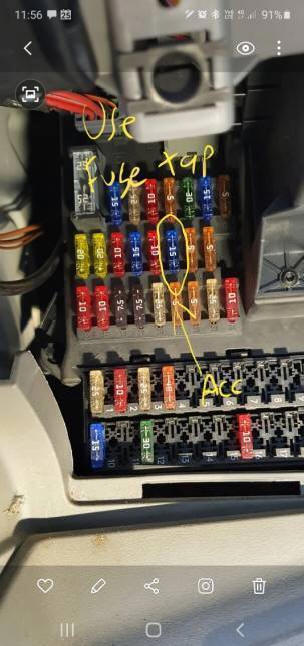

One of my installers took these images for a sprinter:     he also used a fuse tap


2) Antenna.
 If you are getting bad radio signals this can be tested on AM.  AM needs a proper antenna, whereas FM can run off a coat hanger.  Check if your original harness has a Yellow / Black / Blue wire which is not connected to anything.   This will need to be connected to the Blue/Black wire from the unit so that the antenna amplifier is re-powered.

3) Steering
The purple and white cable has a small plug which is plugged in under the steering column

Honda Accord 2003 -2007


O

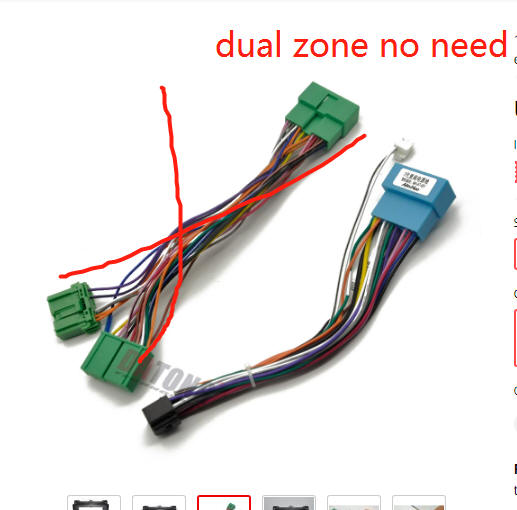

For Dual zone vehicles this green cable is not used


 Toyota Hilux

If steering wheel plug doesn’t match up on 2009 Toyota Hilux

Your steering wheel wires in your vehicle are on the plug with the purple, red, white and blue wires. On the steering harness connect
Black to Blue,
White to White
White/Black to Red.

The steering wheel plug doesn’t match up on 2012 Toyota Hilux

Black -- Blue/Grey
White/Black -- White/Grey
White -- Red/Grey

Toyota 200 Series 2007+

Re-powering the existing factory camera

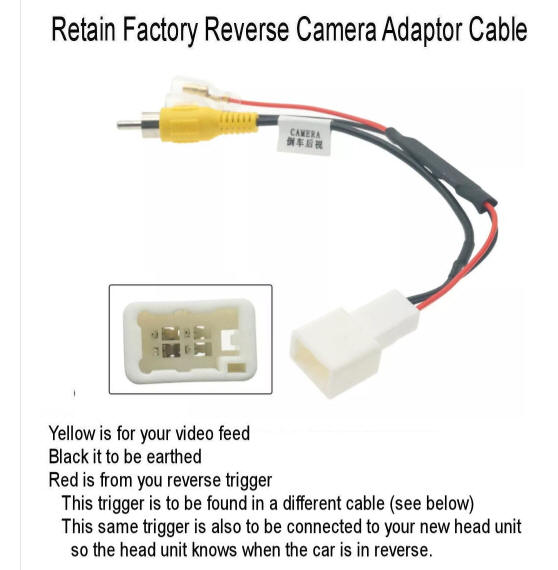

To repower the factory camera you will use the supplied adapter



The black wire is to be earthed.
The other wire (green) is the power source for the camera.

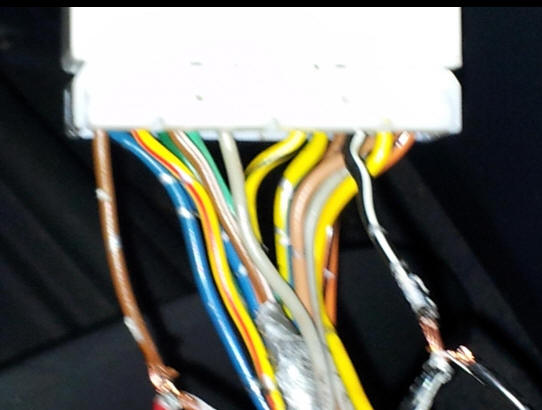

The green wire pictured below is the power source which is only on when the car is in reverse
This Green wire pictured is to be connected to the Green on the adapter and either of the Blue wires marked Back

or
This is to be connected to the power wire for the camera as well as to either or the Blue wires labeled BACK on the supplied wiring looms


 Holden Commodore VT / VX / VU
 Steering Cabling
 There is no plug and play steering cables made for the vehicle and so 2 wires need to be connected.
The Black wire is connected the the black with the stripe
The AD1 wire is connected to Brown wire
The go into your settings to program the unit




 Holden Commodore VY / VZ
 Steering Cabling
 There is no plug and play steering cables made for the vehicle and so 2 wires need to be connected.

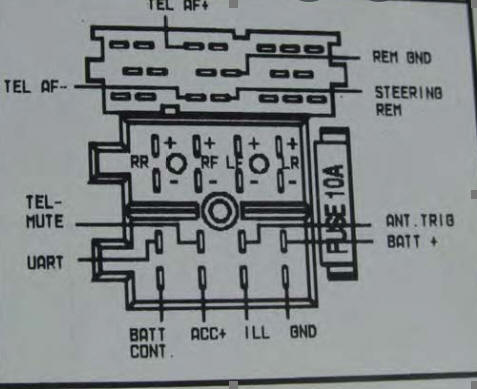

 For the connections for the steering:
Please connect the Key 1 / AD1 wire to the Steering REM wire and the black to the REM GND


And then of course you will need to program the buttons onto the stereo unit via the steering setup.


 Honda HRV *and perhaps other Honda
 Camera cable

The trigger wire for the camera is at the brown wire



 Ford PX Ranger
 Cabling
 The cables provided are all plug and play including steering controls.  A lot of people miss where to connect the black plug with the Pink, Grey and Black.   This is connected to the cable going into the LCD screen.  Without this the steering and buttons will not work.

Also the top screen has an antenna connection. Use this one with the unit as I am told this will give the best radio reception.   You need to check the unit by listening to the AM radio.

 Before you install !!!

Step 1: Remove Ford Sync in your phone and either 'Forgot Device' (if in iPhone) or Delete Cache' (if android phone)

Step 2: If step 1 was forgotten till after the install then with the car running hold the PHONE button on your dash to bring up FORD SYNC on the stereo, on the touch screen push down to Bluetooth and OK (on the screen). an X will appear next to the Bluetooth. this should solve the issue.



Radio antenna

Ford PX Ranger's can have up to 3 antenna plugs. you need to find the correct one by trial and error. The correct one can be an off white colour however this can change so it's best to test them all. The correct one does pull out of your old LCD monitor and is black or off white. Ensure you use the one from the old monitor.

Also, ensure the antenna booster on your vehicle has been powered. This is the white with red trace wire on the right side of the car's radio loom. Connect this to the Power antenna wire (blue with black trace) on the radio harness.

Hazard / Door button wiring

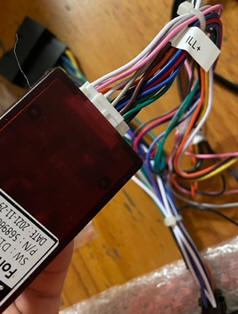

 The loose pink wire should be connected the brown wire labelled "ILL" (illumination)



 Ford Territory / Falcon
 The Aerpro fascia will display on the screen by fooling the unit into thinking the car is in reverse.  To remove the Guide-Lines and parking sensors being displayed go into
  Settings
    Factory Setting
      enter 3368
        scroll down to Reverse image and Radar and turn these off



 Holden Colorado with Mylink

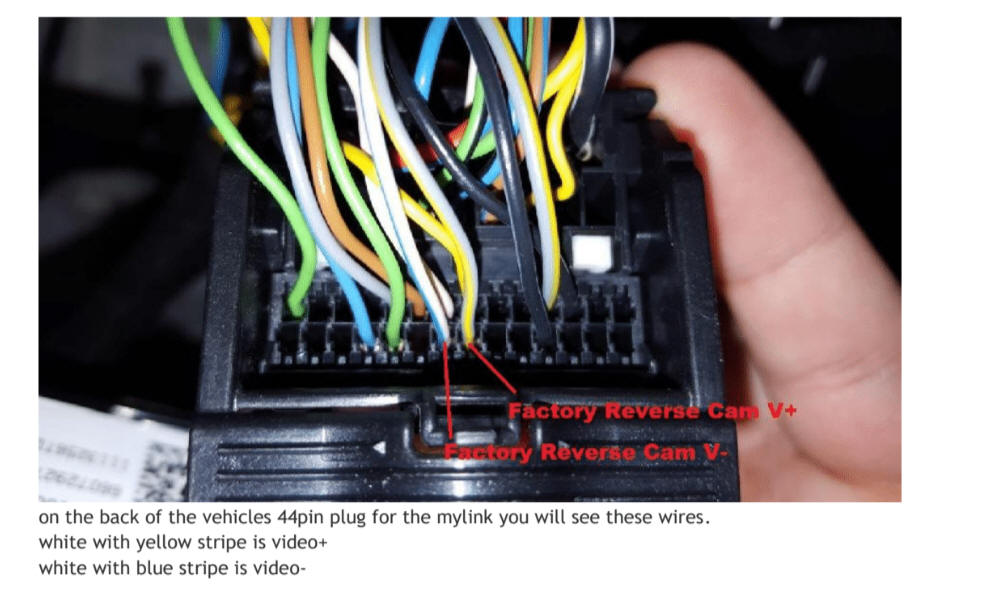

To retain the factory camera it will need to be connected to this cable as below


The inner core (+ve) is connected to the White with the Yellow Stripe
The outer shield (-ve)  is connected to White with the Blue stripe

 Fascia Color
Between the DMAX and Colorado there are 9 different shades of grey / black across the dashboards and so there is a great chance the only shade of grey you have received will be wrong.  To rectify this simply remove the screen from the frame if attached (only 5 screws). Get a spray which matches your dash and spray the back first to make sure the color is ok and once happy spray 2 light coats.
If your vehicle is gloss black apply two light coats and then 2 coats of clear gloss.


 Isuzu MU-X

The Reversing Camera:

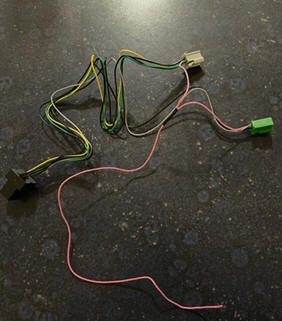

You will be have provided with a camera retention cable similar to https://aerpro.com/apviz01?src=api
One of these wires will be live when the car is in reverse.  This wire is to be connected to either one of the 2 Blue wires marked Back. This will trigger the unit so the screen knows when the car is in reverse.  If you do not have a multimeter simply put the car in reverse and try any of the 3 wires till the unit switches to reverse. Can you please advise which wire you used.

The Yellow male RCA is connected to the Yellow female RCA for the camera on the wiring loom with the bunch of RCA cables.
Connecting to the roof mount:
I will provide a cut RCA cable with bare wires.  To connect the unit to the overhead screen watch the video at https://youtu.be/vK4YTf3xHbk?t=485 and connect the RCA to the Video out.  The cut wires can be stripped and soldered but not 100% necessary as long as you have a good connection and tape.

Retaining the USB
If your vehicle has the OEM Clarion or Fujitsu 10 headunit then a USB can be retained with a retention cable https://aerpro.com/apizusb1   These are sold by Repco / Autobarn / Supercheap / Bursons etc. and should be $15 - $20


 Installing the unit:
The same video as above at https://youtu.be/vK4YTf3xHbk has a good over view but their system is nowhere near as plug and play as what you have


Nissan X-Trail / Qashqai / Navara / Juke
The Power cable:

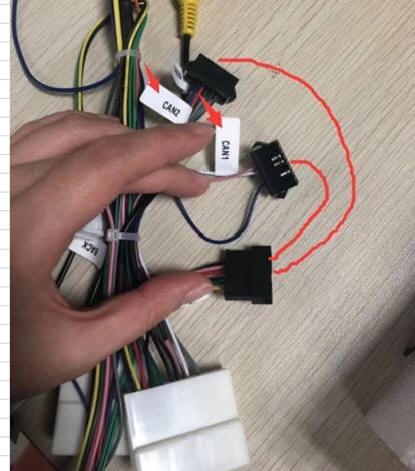

 There are 3 black plugs (2 male and 1 female) which need to be connected.  There are 2 ways of connecting this and so please use the plug marked CAM1


360 Camera setup:

When the unit is installed you need to set it up so it knows that you have the 4 cameras.

There is video available at

https://www.dropbox.com/s/s5u5j6a969c5xfa/Set%20Canbus%20for%20Nissan%20and%20set%20360%20camera%20on.mp4?dl=0
or
 https://youtu.be/sHiipE3uLUM




Navara NP300:

If you car has a single camera you will need to join the wires as described on the image


The Blue wire from canbus mentioned above is the same as this one below

Toyota Hilux 2015+

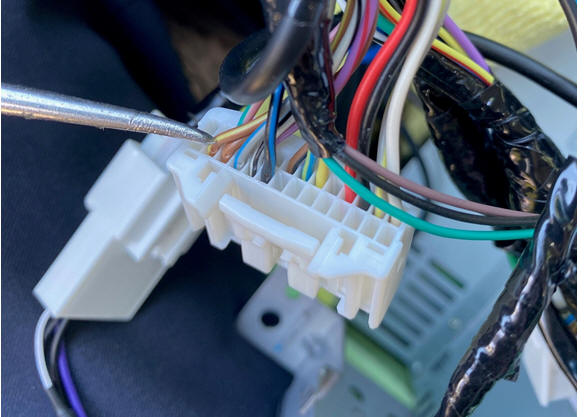

The reverse camera is trigger is shown below on the joined wire and is run to power the camera..


 Renault Captur 2014-2016
The Reversing camera

The reversing camera can be retained by hard wiring a RCA cable and 6V power supply as pictured below


Subaru  Imprezza 2012-2014
The trigger wire on this car is the Brown with the Yelloe stripe



Mitsubishi Triton MN GLX-R

White to Pin3

White/Black to Pin9

Black to Pin10





 VE Commodore

There is an installation manual for this at https://www.dropbox.com/s/xcoj13m6mww91g8/Install%20RL505.pdf?dl=0


iPhone contacts not syncing contacts

Please check the video at https://www.dropbox.com/s/z01hvpq0cg88bxs/Sync%20Contacts%20from%20iPhone%20%28David-PC%27s%20conflicted%20copy%202019-06-19%29.mp4?dl=0




Brand
Brand Car Model  Model Number Year Image Screen Canbus Model Settings

A3 L5049 2003 - 2012 9" Y

XP-Audi-Chery A3-XP

 https://www.youtube.com/watch?v=gNuOJh5lEZs
  A4 L5050 2001 - 2008 9" y XP-Audi-Chery A3-XP  https://www.youtube.com/watch?v=5UDoAWGtsL0
   A6 L5102 2007 - 2014 9" y XP->Audi->A3->XP https://www.youtube.com/shorts/M08dxHp65SI
  TT L5078 2007 - 2014 9" y XP-Audi-Chery A3-XP https://www.youtube.com/watch?v=27YeNGOpP_c

E90 / E91 /E92 / E93 L5095 2005 - 2012 9" Y update software, contact Lisa https://www.youtube.com/watch?v=NXaYK88nKKg
  E46 L5708 1998 - 2005 9"   XP-Audi-Chery A3-XP https://www.youtube.com/watch?v=UEN6vOiCW9s
  E81 / E82 / E88 L5095   9"   update software, contact Lisa https://www.youtube.com/watch?v=fgtYQ8qbWIY
  E38 / E39 L5707 1996 - 2004 9"   NULL https://www.youtube.com/watch?v=EVEZQXDbgKU
  E53 / X5 L5707 2000 - 2006 9"  Y NULL https://www.youtube.com/watch?v=GXuHXRtIVp8


Silverado L5021A 2014+ 10"     https://www.youtube.com/watch?v=152kYvTpFhs

300C L5206 2006 - 2007 9"  Y zh-jeep-wrangler-all https://youtu.be/O03bIU3Vfqg
  PT Cruiser L5206P 2006 - 2009 9"

C4 L5088 2005 - 2011 9   ZH-Citroen-ALL-ALL https://www.youtube.com/watch?v=4oVqNlXiJ_M
  C4 L5241 2012 - 2015 10   ZH-Citroen-ALL-ALL https://www.youtube.com/watch?v=kiCuJKNY1M0


Caliber Caliber 2006-2008 2006 - 2008 10     https://www.youtube.com/watch?v=Zfu2f_DyTd4
  Journey L5268 2012 - 2015 9     https://www.youtube.com/watch?v=K1UqD0m-LCE
  Caliber 2009-2011 Caliber 2009-2011 2009 - 2011 9     https://www.youtube.com/watch?v=VoEx3QMz0ks


Freemont L5268 2013 - 2015 9     https://www.youtube.com/watch?v=K1UqD0m-LCE
  Ducato  L51071 2011 - 2014 7     https://www.youtube.com/watch?v=JyzCh80EljU




Focus L5003 2004 - 2008 9   XP->Ford->Mondeo->XP https://www.youtube.com/watch?v=gN15v6_zGvs




  Focus L5501 2011 - 2015 9   ZH-Ford-Focus/kuga/Ecosport-Fiesta https://youtu.be/LOL6_PxGJTQ


  Kuga L5362 2014 - 2015 9   ZH-Ford-Focus/kuga/Ecosport-Fiesta https://www.youtube.com/watch?v=r5Imw_EkQBY
  Mondeo L6231 2007 - 2015 9   XP->Ford->Mondeo->XP https://www.youtube.com/watch?v=gN15v6_zGvs
  Ranger  PJ-PK LBT50 2007 - 2011 9     https://www.youtube.com/watch?v=zAE6GP_D-Ew
  Ranger PX L5245 2012 - 2015 9   ZH-Ford-Focus/kuga/Ecosport-Fiesta

ALSO Please read the vehicle specific notes		 https://www.youtube.com/watch?v=0HHL9stgzwg
  Ranger PX MKII L5574 2015- 2017 9   ZH-Ford-EDGE-ALL / FOCUS? https://youtu.be/NCFXmRDgcBQ
  Everest L5574 2015 - 2017 9   ZH-Ford-EDGE-ALL https://youtu.be/NCFXmRDgcBQ


Steed W1109 2016+ 9


H9     10"   RZC-HAVAL-HAVAL H9 - RZC (or try RZC.AMP or 2015.2017 Low) https://www.youtube.com/watch?v=A8zT7eyz_Ag


Barina L5107 2011 - 2016 9   ZH-GM/Chevrolet-ALL-ALL https://www.youtube.com/watch?v=Ho_S2M-c3aU
  Captiva 7 SX / LS L5109 2012 - 2013 10   NULL https://www.youtube.com/watch?v=TMKd2HFV7_E&t=1s
  Colorado L5435 2012 - 2014 9     https://www.youtube.com/watch?v=7VTzsmW84zo
  Colorado MyLink L5435-2 2014 - 2016 9   ZH-GM/Chevrolet-ALL-ALL https://www.youtube.com/watch?v=b-a-ryU6EL8&t=2s
  Cruze L5045 2009 -2016 9   ZH-GM/Chevrolet-ALL-ALL https://youtu.be/1R9w8x9d51s
  Epica   2007 - 2011 9
  Malibu L5169   9
  Trailblazer W1084 2017 - 9"     https://www.youtube.com/watch?v=imYx3o06cD4
  Trax  L5309 2013 - 2017 9   ZH-GM/Chevrolet-ALL-ALL https://www.youtube.com/watch?v=GXSfEoO92J8
  Trax    2018 - 2019 9     https://www.youtube.com/shorts/SAymwLxbgoE


Accord Accord 2003-2007 2003 - 2077 10   DAOJUN-HONDA-ACCORD.. https://www.youtube.com/watch?v=Yh_v1VZI2s8
  Accord   2008 - 2012 10     https://www.youtube.com/watch?v=BY7u0s5Mnnw


  Accord   2013 - 2015 10     https://www.youtube.com/watch?v=h2-CSVrzp5Y


  Accord Euro L5101 2008 - 2015 10   LZ(HZ)-Honda-Spiror-LZ2012 https://www.youtube.com/watch?v=h2-CSVrzp5Y


  City L5101 2009 - 2012 10   NULL https://www.youtube.com/watch?v=Z0ar6MhSkpw
  City 1066PB 2014 -  10     https://www.youtube.com/watch?v=uPKror7Ry-I


  Civic  TH510 2006 - 2011 10     https://www.youtube.com/watch?v=SO-d-xzjUDw
  Civic  TK547 2012 - 2015 9     https://youtu.be/-4MUej6blT0?t=21
  Civic  L5669 2015 -  9   ZH-Honda-Else-ALL
  CR-V   2002 - 2006 9     https://www.youtube.com/watch?v=WfTCrFd7jhA
  CR-V L5009 2007 - 2011 9   NULL https://www.youtube.com/watch?v=uP9nDfT3HqY
  CRV RW L5111 2012 - 2016 10   ZH-Honda-CRV-ALL https://www.youtube.com/watch?v=MtTw4DURgGw&t=67s
  CRV RW   2017 -  9    ZH-Honda-Else-ALL
  HRV L5422 2014 - 9   ZH-Honda-Else-ALL https://www.youtube.com/watch?v=KAs0NUQ58yM
  Jazz L6233 2002 - 2008 9   NULL https://www.youtube.com/watch?v=F8JkQYDB0so
  Jazz TK511 2014 - 9     https://www.youtube.com/watch?v=PBe10zAUckY
  Odyssey HD-MK-35 2014 -  10
  Odyssey HD-MK-34 2009 - 2011 10


Accent   2006- 2008 9     https://www.youtube.com/watch?v=B-xKCMIAR10
  Accent L5067 2011 + 9   NULL https://www.youtube.com/watch?v=DwrhK64E5H4&t=1s
  Elantra L5036 2006 - 2010 9   NULL https://www.youtube.com/watch?v=wV47ZHfU4G0
  Elantra L5360 2011 - 2015 9   NULL https://www.youtube.com/watch?v=JfjhqGUTO8c
  Electra   2016+ 9   NULL https://www.youtube.com/watch?v=-AATkhgmKjc
  i20 W030 2010 - 2012 9     https://www.youtube.com/watch?v=3RG7JxyCyPM
  i20 W030 2012 - 2015 9     https://www.youtube.com/watch?v=X0Q8MICWqoQ
  i30 W1041 2018 - 2019
  i45 L5794 2010 - 2012 9   ZH-Hyundai-ALL-ALL
  iLoad L5233 2008 - 2015 9     https://www.youtube.com/watch?v=5dUQoTc7GJo&t=5s
  iLoad L5586 2016+ 9
  IX35 L5249 2011 - 2015 10   NULL https://www.youtube.com/watch?v=D0rdTaU0gpQ&t=6s
  Kona L6058 2017 - 10   NULL https://youtu.be/CI6LxcGnm3s
  Santa Fe  CM L5008 2006 - 2012 9   NULL https://youtu.be/0Lm7tc-5kcE
  Santa Fe  DM L5209 2012 - 2015 9   ZH-Hyundai-ALL-ALL https://www.youtube.com/watch?v=80kAkm7wqNk&t=1s
  Sonata SON1 2006 -2008 9     https://www.youtube.com/watch?v=Pm7_6SMbkUI
  Sonata W1054 2017 - 2018
  Tuscon L5546 2015 - 2019 9   ZH-Hyundai-ALL-ALL https://www.youtube.com/watch?v=4JH7_KWi7yE
  Tuscon L6135 2019 + 9   ZH-Hyundai-ALL-ALL
if need support 360 camera need update apk, contact Lisa
  Veloster Veloster 2011-2016 9     https://www.youtube.com/watch?v=fQy0kwF9L1I


Dmax    2009 - 2011 9     https://youtu.be/I7uhPQJhq9A

  Dmax  L5435 2012 - 2020 9     https://www.youtube.com/shorts/iTT_hveTtj0
  MU-X L5435 2012 - 2020 9     https://youtu.be/vK4YTf3xHbk
  DMAX   2021     XP-JXWSL-DMAX-XP




Cherokee KL L5608 2014 - 2015 10   XP-Jeep-Compass-XP2017
  Compass   2007 - 2008 10     https://www.youtube.com/watch?v=dommzZIYHhQ
  Compass L6078 2010 - 2015 10   ZH-Jeep-wrangler-ALL https://youtu.be/unx2gwmx7II
  Compass L6008 2017 - 2019 10   ZH-Jeep-compass-ALL https://www.youtube.com/watch?v=CECWWCnvb94
  Grand Cherokee WK  L5263 2011 - 2020 9   ZH-Jeep-wrangler-ALL


  Patriot   2007-08 10     https://youtu.be/ZgD1dNPRgwU


  Patriot L6078 2009 - 2015 10   ZH-Jeep-wrangler-ALL https://www.youtube.com/watch?v=YaC6hXpMabA


  Renegade L5711 2014 - 2017 9   ZH-Jeep-Cherokee-ALL

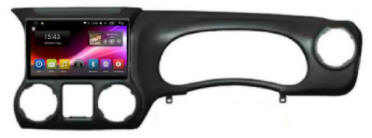

  Wrangler JK L5202L 2007 - 2020

Carnival/Grand
Carnival 		L5589 2015-2020 9   XP-HYUNDAI-Carnival 2018
  Cerato L5046 2007 - 2008  9   NULL
  Cerato L5038 2009 - 2013 9   NULL
  Cerato 2013-2015 L5280（RHD）） 2013 - 2015 9   NULL
  Optima L5345 2011 - 2015      - there is a frame from Peter for this.!!!
  Optima TK097/L5580 2016 - 2019 10   ZH-Hyundai-ALL-ALL
  Kia Sportage(high level) 2007-2010 L5023R/TK108 2005 - 2011 9   NULL
  Rio L1050 2015 - 2016
  Rio L6039 2017 - 2019 9   Null
  Rio L1050 2015 - 2016
  Sorrento L5041 2009 - 2012 10   ZH-Hyundai-ALL-ALL
  Sorrento L5224 2013 - 2014 9   NULL
  Sorrento L5442/TK248 2015 - 2019 10   ZH-Hyundai-ALL-ALL
  Soul L5076 2009 - 2011
  Sportage L5537 2010 - 2015 9   ZH-Hyundai-ALL-ALL
  Sportage L5791/TK033 2016+ 9

XP-HYUNDAIkia-ALL-LOW

OR XP-HYUNDAI/KIA-SPORTAGE- 2019.LOW  or 2019.HIGH, 2019.MID


  Picanto L5795 2018-2019 9   NULL
  LDVT60       RZC-Da Tong - T60 - 2016

LS430 LS430 2004
  IS250 IS250 2006 - 2009


2   2007 - 2014 9
  3 BK L5161/TK0245 2004-2008 9   ZH-OTHER-Mazda/Old OPEL-ALL
  3 BL L5034/TK228 2009-2013 9   ZH-OTHER-Mazda/Old OPEL-ALL
  3 BM L5403 2013-2016
  6 L5311/TK263 2002-2008 9   ZH-OTHER-Mazda/Old OPEL-ALL https://www.youtube.com/watch?v=_OtgcOLivQE&t=1s


  6 L5012/TK233 2008-2012 9   ZH-OTHER-Mazda/Old OPEL-ALL
  BT50 LBT50 2007-2011 9   ZH-OTHER-Mazda/Old OPEL-ALL
  CX-7 L5097 2006-2015 9   ZH-OTHER-Mazda/Old OPEL-ALL
  CX-5 L5223/TK137 2012-2015 10   ZH-OTHER-Mazda/Old OPEL-ALL
  CX-9 CX9 2011+


A Class W169 L5068/HK004 2005 - 2011 9   ZH-Benz-B200AB级-XP
  B Class W245 L5068 2005 - 2011 9   ZH-Benz-B200AB级-XP
  C Class W203 L5171 2000 - 2004 9   ZH-Benz-B200AB级-XP
  CLK        W209 W1095 2000 - 2004
  C Class W203 L5093 2004 - 2006 8   ZH-BENZ-B200AB级-XP
  SLK L5096 2004 -2008 8   HC-BENZ-B200/VIANO-HC.XP
  CLK        W209 L5093 2005 - 2008 8   ZH-BENZ-B200AB级-XP
  CLC L5093 2008 - 2011 8   ZH-BENZ-B200AB级-XP
  E            W211 L5090 2002 - 2009 9   ZH-BENZ-B200AB级-XP
  CLS L5090 2005 - 2011 9   ZH-BENZ-B200AB级-XP
  M Class     W164/M164 L5213/HK029 2005 - 2011 9   BG-Benz-B200/VIANO-BG
  R Class L5215/HK031 2006 - 2012 9   ZH-Benz-B200AB级-XP
  S Class           W220 L5220 2000 - 2004 9   HC->Benz->B200/VIANO->HC.XP
  M Class       W166 WMML 2012 - 2015
  SLK            R171 L5096 2004 - 2011 8   HC-BENZ-B200/VIANO-HC.XP
  Vito         447 L5068 2015 - 2020 9   ZH-Benz-B200AB级-XP
  Sprinter L5068 2007 - 2018 9   ZH-Benz-B200AB级-XP
  Vito             W1095 2004 - 2006
  Viano W1095 2004 - 2007
  Viano L5068 2008 - 2013 9   ZH-Benz-B200AB级-XP
  Vito L5068 2007 - 2013 9   ZH-Benz-B200AB级-XP


GS TK277
  ZS TK189

ASX  XA L5026/TK075 2010 - 2012 10   ZH-OTHER-Outlander-Outlander.AMP.HC
  Challenger PB L5094/TK314 2009 - 2013 9   NULL
  Lancer   2003 - 2007 10
  Lancer CJ L5037/TK232 2007 - 2012 10   NULL
  Mirage RLMIR 2012 - 2017
  Outlander ZG / ZH L5056 2006 - 2012 9   ZH-OTHER-Outlander-Outlander.AMP.HC
  Pajero Sport L6181 2015 - 2019 9   ZH-OTHER-Outlander-XP2014
  Pajero NS NT NW L6009 2006 - 2014 9   ZH-Toyota-ALL-ALL
  Triton  ML    L5094/TK314 2007 - 2009 9   NULL
  Triton  MN GL GL-R GLX L5094 2009 - 2014 9   NULL
  Triton MQ / MR  L6199  / L6198 2016 + 9   ZH-OTHER-Outlander-XP2014


Altima TK010/L5242 2013 + 10   ZH-Nissan-TRIAL-ALL
  Dualis TK264/L6170 2007 - 2013  9   NULL
  Juke L5749 2014+ 9   NULL
  Maxima L6076/TK165 2008-2012 10   ZH-Nissan-TRIAL-ALL
  Navara L5716 2015-2019 9   ZH-Nissan-TRIAL-ALL
  Pulsar  L5196 2013 + 9   NULL
  Qashquai L5353/TK328 2014 - 2019 10   ZH-Nissan-TRIAL-ALL
  Tiida L6148 2006 - 2013 9
  X-Trail T31 L6193 2007 - 2013
  X-Trail T32 L5665/TK004 2014 + 10   ZH-Nissan-TRIAL-ALL https://www.youtube.com/watch?v=cUdYSuau8Vc




206 L5778 2002 - 2007 9
  207 W207 2006 - 2011
  307 L5017 2001 - 2009 9   NULL
  308 L5083 2008 - 2014 9   XP->Peugeot->ALL->XP
  408 L5083 2009 - 2014 9   XP->Peugeot->ALL->XP
  508 PER5 2011+   9
  2008 TK164/L5779 2013 + 10   XP->Peugeot->ALL->XP
  3008 L5017A 2010 + 9   XP->Peugeot->ALL->XP
  4007 L5056 2009 - 2012 9   ZH-OTHER-Outlander-Outlander.AMP.HC
  4008 L5026/TK075 2012 + 10   ZH-OTHER-Outlander-Outlander.AMP.HC


Cayenne L5443 2002 - 2017
  Boxster / Cayman L5444 2004 - 2009
  911 L5444 2004 - 2008


Megane III W145 2009 - 2016
  Koleos L5329 2013 - 2015
  Captur W733 2014 - 2016
  Clio Clio 2013 -- 2016

Fabia TK150 2012 - 2020
  Octavia L5005/TK229 2007 - 2011 10
  Octavia TSI  L5005/TK229 2007 - 2014 10
  Octavia  L5005/TK229 2014+ 10
  Yeti L6225 2011 - 2014 10
  Kodiaq TK187 2017 - 2021
  Superb L5717   10

Korondo L5355 2014 - 2019  9   NULL
  Musso L5356 2019 -2021 9   NULL


Forester WFO 2002 - 2007 9
  Forester SH L5062 2008 - 2012 9   NULL
  Forester   L5775/TK130 2013 - 2014 9   NULL
  Forester  L5775/TK130 2015 - 2018 9   NULL
  Forester SUB1 2018+
  Imprezza find 2000 - 2007
  Imprezza 5062 2007 - 2011 9   NULL
  Imprezza L5775/TK130 2012 - 2014 9   NULL
  Imprezza L6005 2015 - 2016 9   NULL
  Imprezza 8342 2017+
  Levorg L6005 2016+ 9   NULL
  Liberty (legacy) L5061 2009 - 2014 9   NULL
  Libety (Exiga)  find 2009 - 2014
  Liberty  8127 2015+ 9
  Outback L5061 2009 - 2014 9   NULL
  Outback 8127 2015+ 9
  WRX 5062 2007 - 2014 9   NULL
  WRX L5775/TK130 2014 - 2015 9   NULL
  WRX  L6005 2016 + 9   NULL
  XV L5775 2012 - 2015 9   NULL
  XV L6005 2016 - 2017 9   NULL
  XV 8342 2017+


Baleno L5743 2016+ 9
  Celerio   2014+ 10
  Grand Vitara L5053 2005 - 2012 9   NULL
  Ingis SING 2017+ 9
  S-Cross L5337 2013+ 9   NULL
  Swift TK255 2005 - 2010
  Swift L5179/TK523 2011 - 2017 9   NULL https://www.youtube.com/watch?v=Rf4eRRRivcc


  Swift SWI 2017+ 10
  SX4 L5124 2007 - 2013 9   NULL
  Vitara L5571/TK162 2015+ 9   NULL



Image result for toyota logo		 Alphard L5564 2015+ 10
  Aurion L5064/TK085 2006 - 2011 10   NULL
  Aurion L5131/TK148 2012 - 2014  10   ZH-Toyota-ALL-ALL
  Aurion L5432/TK020 2015+ 10   NULL
  Camry   2002 - 2006 9
  Camry L5064 2006 - 2011 10   NULL
  Camry L5153/TK531 2012 - 2017 10   ZH-Toyota-ALL-ALL
  Corolla L5063/TK144 2007 - 2012 9   NULL
  Corolla Sedan L5307（RHD） 2013 - 2016 10
  Corolla L6001（RHD）  2015 - 2019  10   NULL
  FJ Cruiser FJC 2011 - 2015
  Fortuner TK572 2015 +
  Hiace   2012 - 2019 10
  Hiace   2019+  10
  Hilux L5571/TK162 2013 -2014 9   Zh-Toyota-ALL-ALL
  Hulix   2015 - 10   Zh-Toyota-ALL-ALL
  Kluger   2003 - 2006 9
  Kluger L5035/TK221 2007 - 2013 10   NULL
  Kluger TK017/L5445 2014 + 10   ZH-TOYOTAL-ALL-ALL or XP-TOYOTA-CAMRY-XP
  Mark X TK161 2004 - 2007
  Mark X TK022 2009 - 2014
  Landcruiser 100 series L5051 2002 - 2006
  Landcruiser 200 series GXL / Altitude L5381/TK303 2007 - 2014 10   NULL
  Landcruiser 200 series GXL / Altitude L5567 2016 - 2019     XP-TOYOTA-CAMRY-XP
  Landcruiser 200 series GX L5381/TK303 2010 - 2019 10   NULL
  Landcruiser 200 series VX L5381 2007 - 2014 10   NULL
  Landcruiser 200 series GX / GXL L5609 2016 - 2020 9"

ZH-Toyota -All - All or XP-TOYOTA-CAMRY-XP
  Landcruiser Prado 150 series L5065/TK145 2009 -2011 10   XP->Hyundai->IX35->XP/or update software
  Landcruiser Prado 150 series L5065 2012 - 2013 10   XP->Hyundai->IX35->XP/or update software
  Landcruiser Prado 150 series L5531/TK023 2014 - 2017     ZH-Toyota-ALL-ALL
  Landcruiser Prado 150 series L6053/TK307 2018 + 10   ZH-Toyota-ALL-ALL or
XP-TOYOTA-CAMRY-XP
  Rav4 RLRA 2001 - 2005 9
  Rav4 L5018/TK165 2006 - 2012 10   NULL
  Rav4 L5247 2014 - 2018
  Yaris YAR 2005 - 2011 ?



  Beetle Beet  2000-2010
  Crafter L5068 2007 - 2013
  Golf MK 7 VWGolf 2013 - 2019 10   ZH-Volkswagen-Glof7-ALL
  Golf MK 7 VWGolf 2014 - 2016 10   ZH-Volkswagen-Glof7-ALL
  Jetta LS430 2014 - 2019
  Passat L6183 2017 - 2019 10
  Polo W5370-2 2010 - 2014 9   ZH-Volkswagen-ALL-ALL
  Polo W5370-2 2015 - 2017 9   ZH-Volkswagen-ALL-ALL
  Tiguan L5731/TK082 2017+ 10   ZH-Volkswagen-Glof7-ALL
  Touareg Mechless 2003 - 2010
  Touareg W1048 2011 - 2018
