BI8100DVR
special order 2 - 3 weeks |
|
8 Channel Network Digital Video Recorder
with 3G support
Functions:
Flexible display mode for Full Screen,
Quad, 8 Screen etc.
Various recording modes: Timer, Motion Detection
Recording picture quality and resolution is variable
Resolution, image quality and frame rate is adjustable
for each channel independently
Multi Method Searching: Time, Recording event
(Alarm. Motion detection), Recording list.
Supports Multi-channel playback simultaneously,
Triplex :Network, Recording and playback simultaneously
User friendly interface

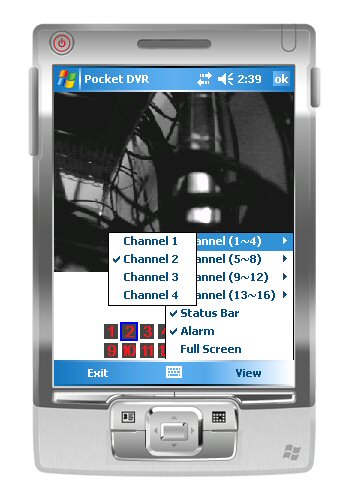

Sophisticated Network Functions: Remote surveillance,
remote playback / recording, MSN, Mobile Phone
Backup: Network, USB2.0, DVD/DVD RW (optional)
Multiuser Online monitoring
VGA output
Supports 4pcs SATA HDD (2PCS SATA + 1pc Esata)
Low stream recording (500G can record 8 channels
continuously for 1 month!)
ICMS
|
1. VIDEO |
|
Input Level |
|
1.0 Vp-p±10% Composite, 75W
Balanced |
|
Display Speed |
NTSC |
480 fps(16CH), 240fps(8CH), 120fps(4CH) |
|
PAL |
400 fps(16CH), 200fps(8CH) , 100fps(4CH) |
|
Display Resolution |
NTSC |
720(H) X 480(V) |
|
PAL |
720(H) X 576(V) |
|
Monitor Output |
|
2Vp-p Composite, 75W
Balanced |
|
2. RECORDING |
|
Compression Method |
|
H.264 |
|
Recording Speed |
|
Refer to table 7-1 |
|
Recording Resolution |
NTSC |
720 X 480, 720 X 240, 352 X 240 |
|
PAL |
720 X 576, 720 X 288, 352 X 288 |
|
Quality |
Independent for each channel |
Lowest/ Low/ Normal/ High/ Highest |
|
Schedule |
|
Setup by “minute” as unit |
|
Mode |
|
Manual / Event (Motion, Sensor) / Schedule |
|
Method |
|
By resolution, fps and quality
Setup fps and quality separately for normal and
event recording |
|
Water Mark |
|
Support |
|
3. SATA DEVICE |
|
Capacity |
Internal Storage |
3 HDDs or 2 HDDs + 1DVD-RW (16 CH)
2 HDDs or 1 HDDs + 1 DVD-RW (4CH/ 8CH)
|
|
External Storage |
1 HDD |
|
Type |
|
SATA / SATAⅡ
compatible |
|
External Bay Interface |
|
E-SATA |
|
4. ALARM |
|
Sensor Input |
|
16(16CH), 8(8CH), 4(4CH) |
|
Loop Out |
|
1 Relay out |
|
Motion Detection |
|
Available per each camera/ Multi-detection level |
|
5. CONNECTIONS |
|
Video Input |
|
BNC 8 ports (8CH), |
|
Video Output |
|
BNC 2 port, VGA 1 port ) |
|
Audio Input |
|
RCA 4 CH |
|
Audio Output |
|
RCA 1 CH |
|
USB 2.0 |
|
USB memory stick, USB Mouse, USB Touch Panel |
|
Remote |
|
Remote control, 1-to-8 remote control (optional) |
|
External I/O |
|
1 RS-485, 16(16CH) / 8(8CH) / 4(4CH) sensor
input,
1 Relay Output |
|
Ethernet |
|
1 RJ45 connector, 10/100 Mbps |
|
6. ELECTRICAL |
|
Power Source |
|
DC 12V / 6.25A (16CH) ,
DC 12V / 5A (8CH) , DC 12V / 5A (4CH) |
|
|
|
|
|
|
|
|
|
|
|
|
|
7. ENVIRONMENTAL |
|
Operation Temperature |
|
5℃
~ + 40℃ |
|
Humidity |
|
Less than 90% |
|
8. PHYSICAL |
|
Dimention |
|
430(W) x 293(D) x 55(H) mm |
|
Weight |
|
2.5kg (3.5kg including 1 HDD and CD-RW) |
|
9. BACKUP |
|
BACKUP |
USB Stick |
Video Data, Audio |
|
CD-RW/DVD±RW |
Video Data, Audio |
|
Network |
Video Data, Audio |
|
10. SEARCHING & PLAYBACK |
|
Searching Method |
|
Event/ Time |
|
11. MULTI-REMOTE SURVEILLANCE |
|
Monitoring Environment |
|
Web / Client Software(CMS) |
|
Max. client |
|
Supporting multi-client (5 clients accessible) |
|
12. OTHERS |
|
OS |
|
Embedded Linux |
|
Multi Task |
Pentaplex |
Live、Record、Playback、Network、Data
transfer |
|
Control Device |
|
Front Keys / Remote Control / 1-to-8 Remote
Control (Optional)
Virtual Keyboard / Mouse / AP Software |
|
PC Viewer |
|
Direct monitoring of DVR’s HDD on PC |
|
Numbers of event list |
|
15360 |
Table 7-1
|
Recording Speed
(Independent setting for each channel) |
NTSC |
352 x 240 |
240fps / 16CH, 8CH
120fps / 4CH |
|
720 x 240 |
120fps / 16CH, 8CH
60fps / 4CH |
|
720 x 480 |
60fps / 16CH, 8CH
30fps / 4CH |
|
PAL |
352 x 288 |
200fps / 16CH, 8CH
100fps / 4CH |
|
720 x 288 |
100fps / 16CH, 8CH
50fps / 4CH |
|
720 x 576 |
50fps / 16CH, 8CH
25fps / 4CH |
|
Compression Method |
H.264 |
