CARAVAN SPECIALS

Caravaners Special - $400 Complete

Camera 1: Bullet CMOS Camera Butterfly CMOS Camera Mini Bullet CMOS Camera Mini Tailgate CMOS Camera H/Duty Butterfly CMOS Camera Camera 2: White CCD Truck Camera Black CCD Truck Camera White Round CCD Caravan Camera Black Round CCD Caravan Camera White Caravan CCD Camera Black CCD Caravan Camera Monitor: 7" Clip over Mirror 7" Replacment Mirror 7" Sunshield 4.3" Replacement Mirror 4.3" Clip Over Mirror

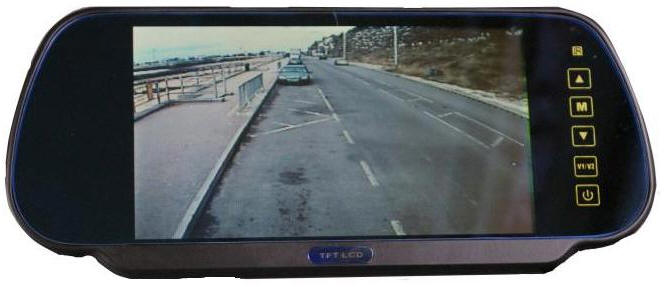

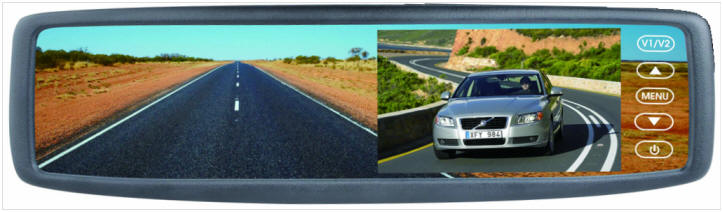

         7" Monitor      7" Clip Over Mirror                  4.3" Replacement / Clip Over

2) Choose the camera for your car


 Bullet           Tailgate                  H/D Butterfly

3) Choose a camera for your caravan - all cameras are available in Black or White

       HD Truck               Round                        Caravan

                       The entire system is connected via 4 pin Aviation connectors

             Monitor End                                                            Camera End

The monitors:
Simply select if you would like a monitor with a sunshield or one which clips over your existing mirror.  The sunshield monitor is supplied with a window suction mount. The mirror LCD is ideal as it is a natural place to look whilst driving but due to ambient light in many large vehicles this monitor works best with tinted windows.  Without the window tint it may look washed out.

The cameras:

The system is supplied with 1 x CMOS camera and 1 x CCD camera.
The CMOS is for reversing
The CCD is for viewing the camera looking down the road whilst driving. (the motorized unit will also look down to the rear of the caravan whilst reversing.

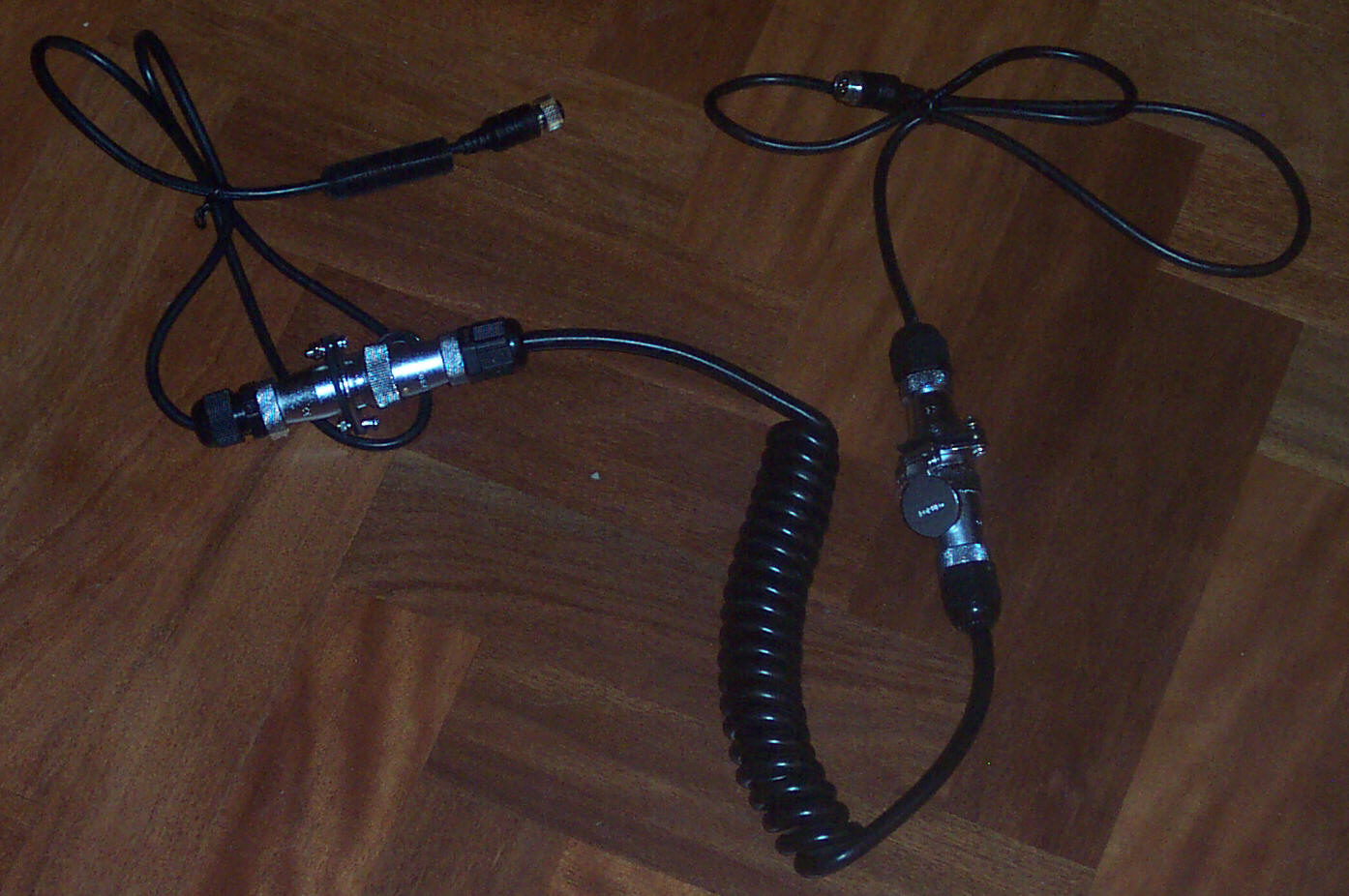

The Cables:
The system is supplied with
1 x 7.5M twin cable for inside the vehicle
1 x 15M cable to the back of the caravan.

Powering this up is a breeze.  Your installer will simply connect this to a power supply in your car and run the cables all the way back to the cameras. The same cables will power up the cameras.  The system can be made to come on automatically in reverse but if towing the trip wire should not be connected as you will see the hitching post in reverse.  The remote control is not sent with this monitor as it is not needed (and in fact it could be dangerous looking for it instead of keeping the eyes on the road).  If you do require the remote please specify that you need it and it will be posted with the unit free.

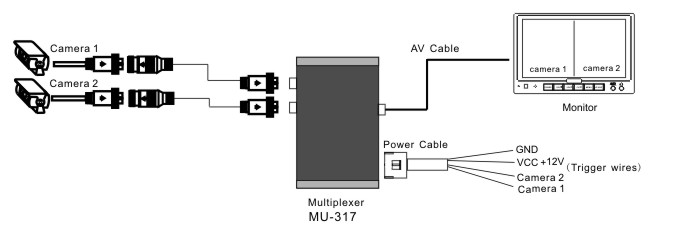

Wiring hint:   The green trigger wire, when powered, will activate camera 2 (your car cameras).  When connected this system you can either not connect this wire or connect it via a switch.  Otherwise when reversing your caravan you will see the image coming out of the car.

The remote control is not sent with this monitor as it is not needed (and in fact it could be dangerous looking for it instead of keeping the eyes on the road).  If you do require the remote please specify that you need it and it will be posted with the unit free.


Spiral connector  Add $ 50
Add the spiral connector for $50.  The connectors come with covers and screw on connections making them the very best on the market.
