BI641
special order 2 - 3 weeks |
|
Waterproof and weather resistant housing for outdoor use
Zoom Lens 3.5mm - 8mm
Excellent Night Vision
66 IR LEDs
IR Distance: approx. 30m

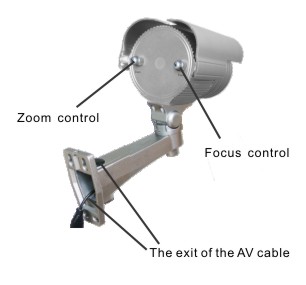

These cameras have inline adjustments to make these totally adjustable.
COLOR CCD CAMERA SPECIFICATION
Image Device: 1/3″SONY Super HAD CCD
Solution: SS-HQ1
TV System: PAL
Total Number Of Pixels: PAL: 795(H)×596(V)
Effective Pixels: PAL:752(H)×582(V)
Sensing Area: 4.9mm(H)×3.7mm(V)
Sync. System: Internal
Resolution: 480 TV Lines
Minimum Illumination: 0Lux (Infrared lamps on) 0 .5Lux(day) / F1.2
Video Output: : Composite Signal (1.0Vp-p, 75Ω)
Gamma Correction: 0.45
AGC: ON
S/N Ratio: Better than 52dB
White Balance: Auto
Electronic Shutter: 1/50-1/100,000Sec 1/60-1/100,000Sec
BLC: Auto
Current Consumption: Max.500mA
Power Supply: DC12V
Operating Temperature: -20 ~ ℃ 70℃ RH95% Max
Storage Temperature: -40℃~ 80℃ RH95% Max
Lens: f=3.5~8.0
Lens Angle: 95°~44°
|
