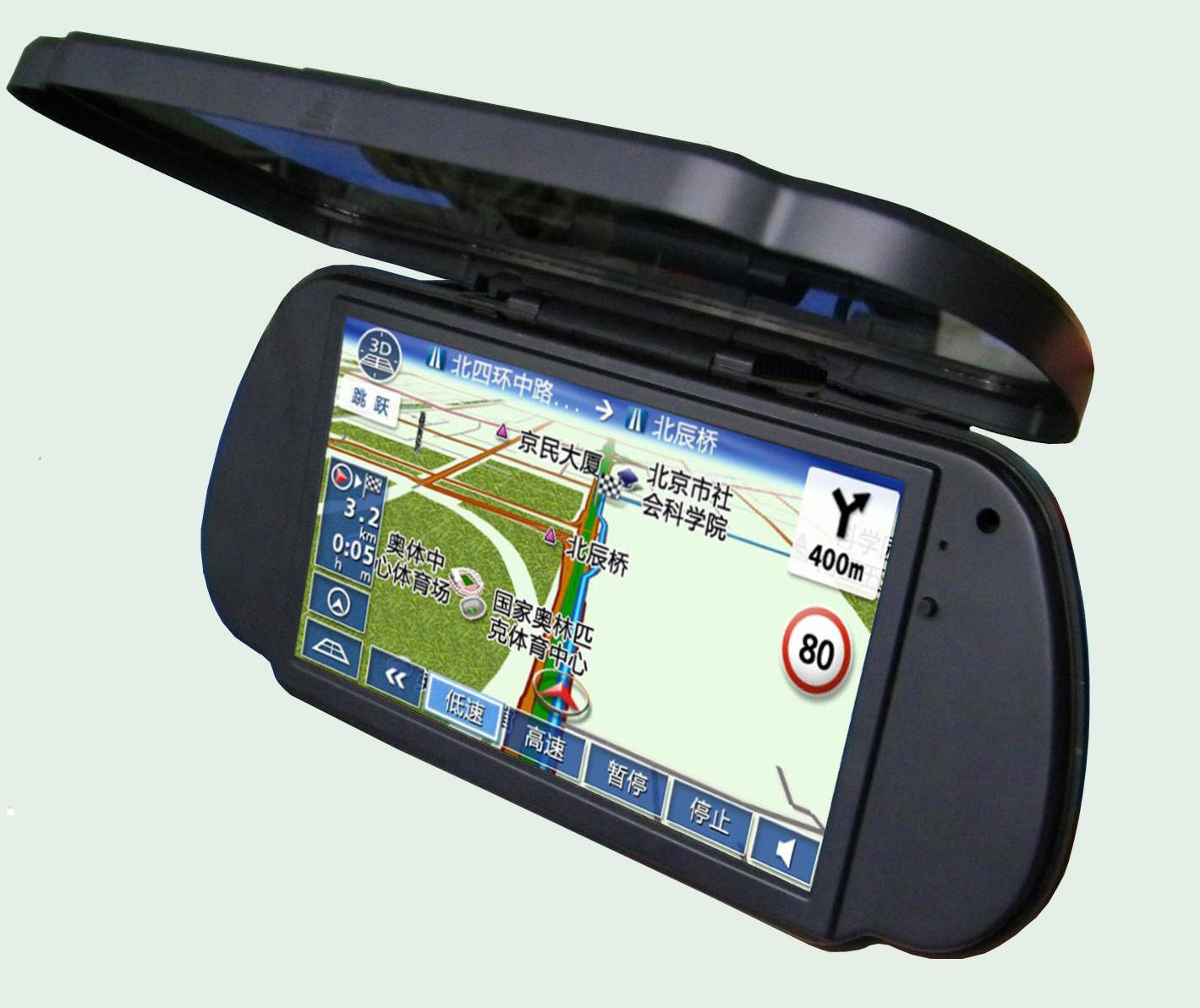

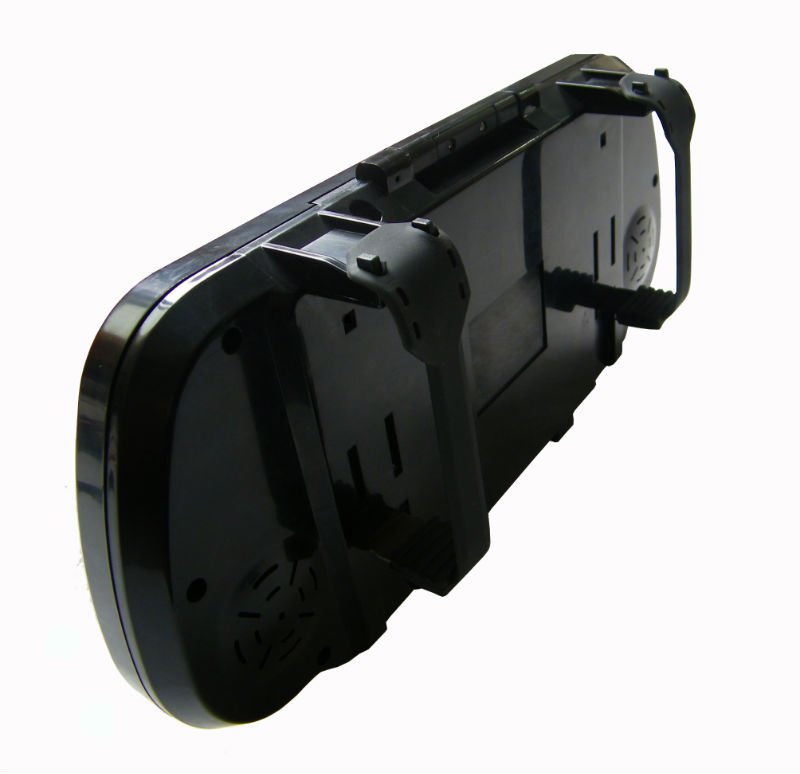

7" GPS with Digital LCD, Bluetooth and camera input

the image is for display purpose only. The unit is sent with
Australian Mapping etc.
Features:
Microsoft Windows CE.NET 5.0
High resolution digital Panel 800 x 480
The mapping will speak the name of the street as well as warn of red light / speed camera etc.
Processor: SAMSUNG ARM9 S3C2451 533MHZ
Memory: 64MB SDRAM NAND Flash
GPS Module: SiRF III Sensitive antenna, baud rate at 4800bps,20 receiving channels
Location accuracy: 3-10m.90% accuracy
Antenna sensitivity: 0.1m/s
Navigation software: support WIN_CE 5.0 system, ARMV4I compilation, software stored in SD
card
Bluetooth function: built-in Bluetooth module and antenna, which help you enjoy the functions of hand free communication, coming phone receiving and phone No. showing, dial and redial, as well as communication record search
GSM function: support GSM, voice services, MSM, coming phone receiving, call transfer, call waiting, tripartite talk etc., team call, broadcast, Private call etc.
FM transmit function: support FM audio transmit, frequency range 88MHZ-92MHZ.
AV_IN: in-car camera can connect to GPS by the AV in interface, which turns the device to be an excellent rear view mirror of the car, mirror image can be set
Audio: play audio in MP3/WMA/PCM format, play modes include sequence, random, repeat; speaker and earphone jack output
Video: support MP4/ASF/WMV/AVI/DIVX formats, maximum pixel up to 800*480, support adjust display progress and full screen display.
Browse photo in the Format of BMP, JPG, PNG etc. support maximum pixel up to 2500*2500
Memory slot: SD (up to 16GB) card and MMC card
System upgrade: upgrade online via SD card
Comes with AC adaptor, cigarette lighter adaptor, dash mount
The units are shipped with the latest road mapping (included in the
purchase price. Ozi Explorer is offered as an option and must be
done BEFORE the unit is shipped (or the unit be returned for registering
the unit etc)
READ THE
FULL ROAD MANUAL HERE
READ THE OZI EXPLORER HELP FILE HERE
MAPPING: When the Ozi Explorer GPS
option is purchased the unit will display 2 icons when
selecting navigation. You will have the option of
selecting either the standard turn by turn road mapping
or the off road mapping. The Off-road mapping
software is supplied by Ozi Explorer. The mapping for
both the off road is supplied by Australain Geoscience maps
using a 1:250K scale. The only help available for the
use for how to use Ozi Explorer is via the link above,
via online forums or private tuition. The areas for the
Geoscience maps cover the entire Australian continent as
well as the entire coast line. If you have other maps
or other scales then these can be added to the SD card.
Select either Road maps or off road maps - no need to
change SD cards!
Ozi Explorer area covered using NAT Maps from Aus Geoscience
for Off road
and Marine mapping.
These maps have been digitally converted for Ozi
Explorer.
Ozi Explorer CE features:
Mark waypoints
Breadcrumb trail
Log & save tracks
Many map zoom levels
More/Less detailed maps
Automatic loading of next map
Roads
Major road to public or private track
with minimum or no construction
Hydrographic
Watercourse, canals, perennial lake, bore, well,
wind pump, waterhole, spring, swamp
Cultural features
Pipelines, tanks, homesteads, ruins, landmarks,
fence, levee, quarry, mine
Boundaries
State & territory borders, reserves and prohibited
areas
Railways
Tracks, stations, sidings and abandoned lines
Vegetation
Forest, scrubland, rain forest, plantation, orchard
Aircraft facilities
Airport, landing strip, helipad
Offshore & Coastal features
Boat ramp, lighthouse, reef, shoal, wreck, costal
flat, mangrove
Relief
Elevation, sand dunes, cliffs, sand ridges, pinnacle
and contour lines with values.
Ozi Explorer area covered using Aus Geoscience off road
mapping:
Camera Options:

Bullet Number Plate Miniature
Tailgate A
Miniature Tailgate B

Heavy Duty Butterfly
Caravan Camera
Miniature Tailgate C
|
Camera Options
|
CMOS
|
|
Bullet
CMOS |
|
|
Number Plate
CMOS
|
|
|
Miniature Tailgate
A CMOS |
|
|
Truck / Van
|
|
|
Miniature Tailgate C CCD |
|
First Camera is automatically supplied with a 6M RCA cable
Second Camera is supplied with both 6M and 15M RCA cabling
GENERAL CONNECTIONS FOR ALL RCA MONITORS:
Both Camera and monitor need to be powered by connecting
Red - Positive
Black - Negative
If the power cable does not have Red/Black wires then
you will need to test using a multi meter. The inside
of the plug is positive, the outside negative
Some monitors may also have a green wire which, when
connected to the positive side of the reversing light
will make the camera display on input no 2. If
connecting a second camera then this wire should not be
connected (or a simple switch put in to disable it when
the second camera is connected). The monitor can be
manually turned on to display the camera at any time and
can be left on whilst driving.
The connection between the camera and the monitor is via
a simple RCA cable. Only the YELLOW is used.
If more instructions are needed then you
should be getting this unit professionally installed
Of course all items supplied should be tested BEFORE
installation.
|
