Vgate iCar 2 WIFI Version OBD2 Code Reader iCar2 supports OBDII protocols, this version support Android, IOS and Windows.

Top 8 Reasons to Get iCar 2 (WIFI Version):
1. Support stable wifi connection, no need wires or batteries.
2. Small size, compact structure. Plug and never unplug
3. When stop communication, wait half an hour, auto sleep
4. Supports all OBDII protocols
5. The adapter uses the fastest and most reliable ARM chips
6. Wireless (wifi version) 10 ~ 20 meter
7. iCar2 (wifi version) support for software applications for ios (for iphone4 / 4s / 5 / 5s / for ipad / mini, Andrews, java)
8. Software version: V2.1
  Hardware version: V2.1

Supports all OBD-II protocols:
 Automatic
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
A.SAE J1939 CAN (29bit ID, 250 * Kbaud)
B.USER1 CAN (11 * bit ID, 125 * Kbaud)
C.USER2 CAN (11 * bit ID, 50 * kbaud)

Vgate iCar 2 WIFI Version Functions:
1. Read, erase and display code descriptions problems - both standard and spetskodov manufacturers.
2. Measure the fuel consumption.
3. Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the valuesof oxygen sensors, air intake temperature, and more.
4. Turn off the MIL (signal Check Engine).
5. Download data to external media in a variety of formats for later printing.
6. Record various parameters, display graphics in real time, and more.

Software Display

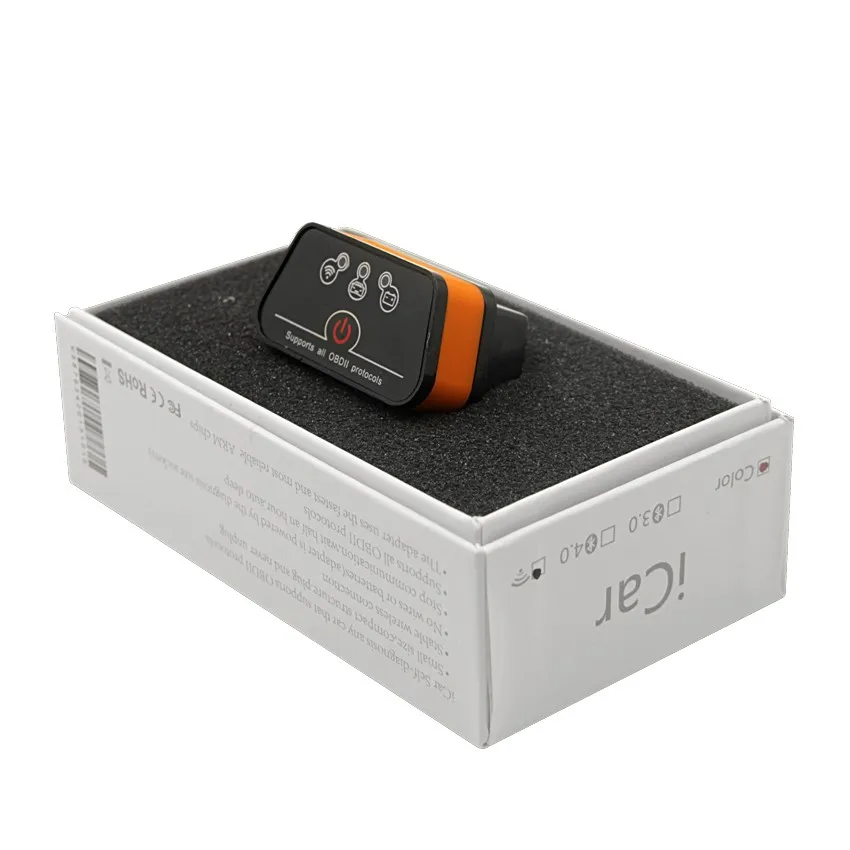

1pc x Vgate iCar 2 (WIFI Version - color may change)
1pc x User's Manual
1pc x Color box
