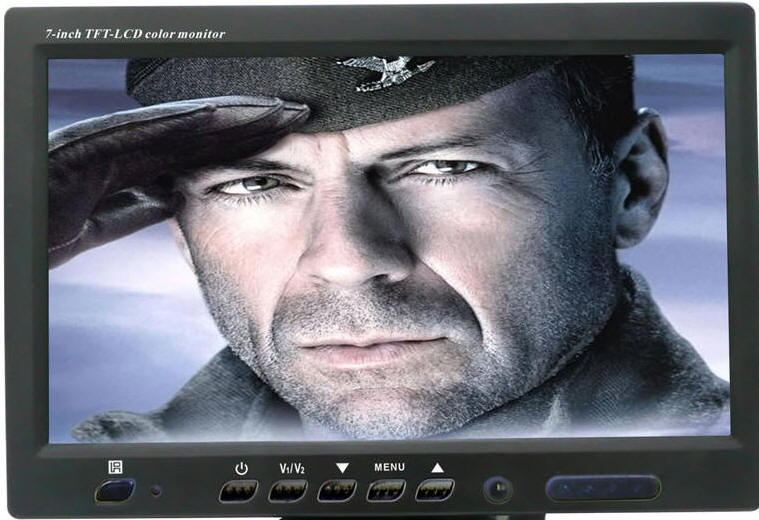

BI7199 (7")

Headrest / Reversing Monitor with shroud and stand


Display size: 7inch
 ·Aspect ratio: 16:9
 ·new AU TFT-LCD panel
 ·Resolution: 234 x RGB x 480pixels
 ·Power supply: DC 12V
 ·Power consumption:≤7W
 ·Color available: Black,
 ·Dimension: 195 x 140 x 25mm
 ·N.W.: 0.5KG
The remote control is not sent with this monitor as it is not needed (and in fact it could be dangerous looking for it instead of keeping the eyes on the road).  If you do require the remote please specify that you need it and it will be posted with the unit free.

Camera Options:
    Bullet                                                     Number Plate                            Miniature Tailgate B

    Heavy Duty Butterfly                                       Caravan Camera                                           Miniature Tailgate C

  Camera Options CMOS
Bullet CMOS
$ 55
Number Plate CMOS
$ 55
Miniature Tailgate B CMOS
$ 60

Heavy Duty Butterfly


Truck / Van

Miniature Tailgate C CCD
$ 100


Extra 6M M - M RCA cable
$ 5

First Camera is automatically supplied with a 6M RCA cable
Second Camera is supplied with both 6M and 15M RCA cabling


Both Camera and monitor need to be powered by connecting
Red - Positive
Black - Negative
If the power cable does not have Red/Black wires then you will need to test using a multi meter.  The inside of the plug is positive, the outside negative

Some monitors may also have a green wire which, when connected to the positive side of the reversing light will make the camera display on input no 2.  If connecting a second camera then this wire should not be connected (or a simple switch put in to disable it when the second camera is connected).   The monitor can be manually turned on to display the camera at any time and can be left on whilst driving.

The connection between the camera and the monitor is via a simple RCA cable.  Only the YELLOW is used.

If more instructions are needed then you should be getting this unit professionally installed

Of course all items supplied should be tested BEFORE installation.
