Korean Factory camera retain

Some Kia / Hyundai / Great Wall have the factory camera wiring in the main harness but none of the cables coming from China will retain this properly, if at all.   (hopefully this will change)

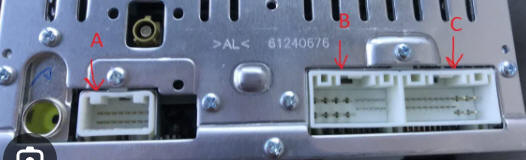

If the rear of your factory stereo has the A plug like below then you will need a separate camera retain cable.

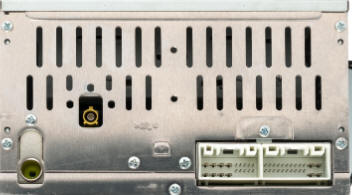

If your car has only one main plug like this

then this information is for you.

As you will see many different Korean cars will use the same cable for different models


Connecting up is quite straight forward:

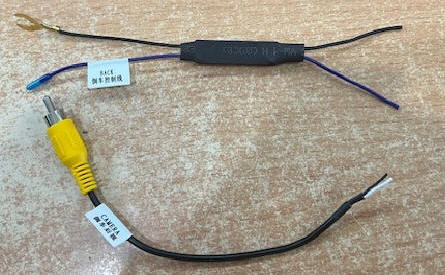

What you will need is a cable with a 12V - 6V reducer like this  (if you do not have please contact)

You will end up chopping the white plug off

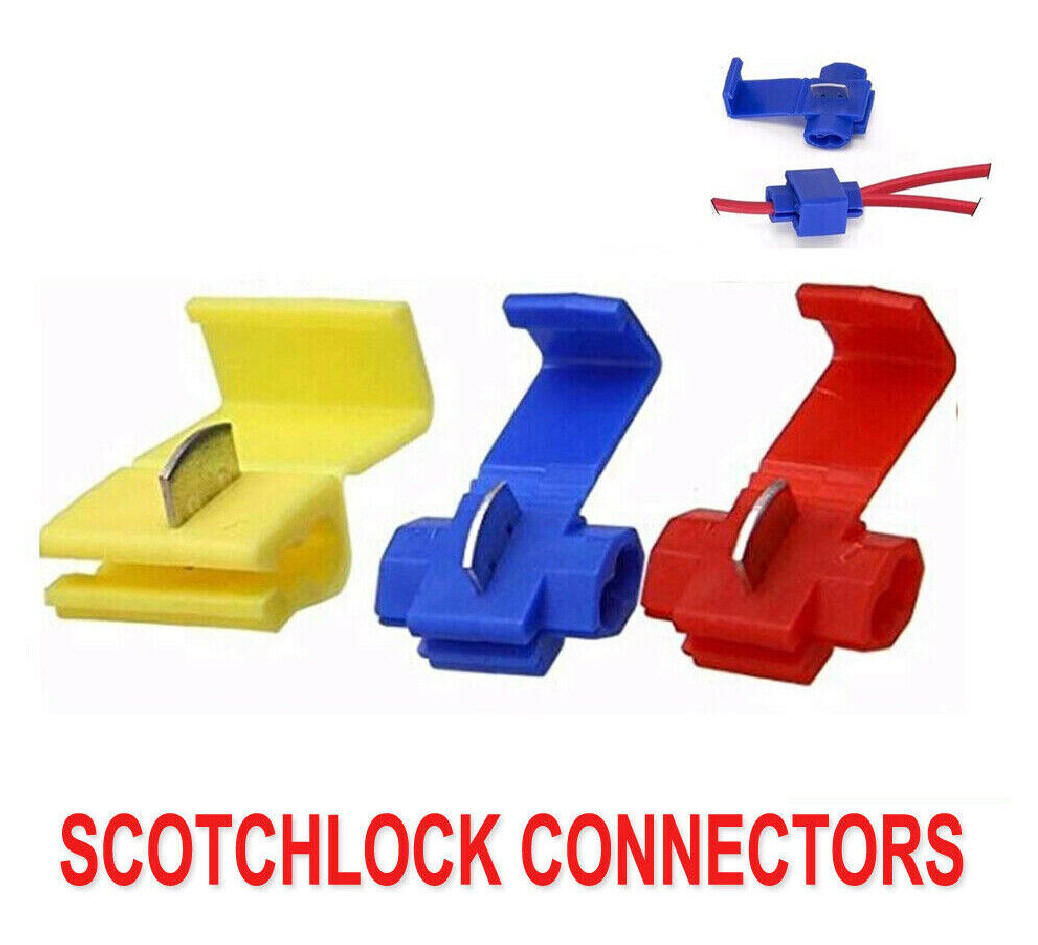

You will need 6 of this style Scotchlock connectors.  (Repco, Autobarn, Strathfield etc)



D

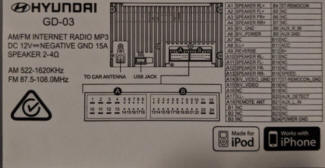

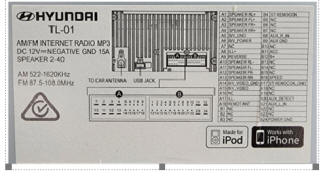

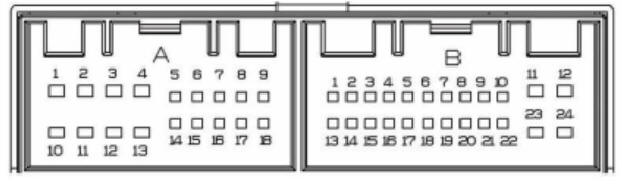

When you look at the plug on the back

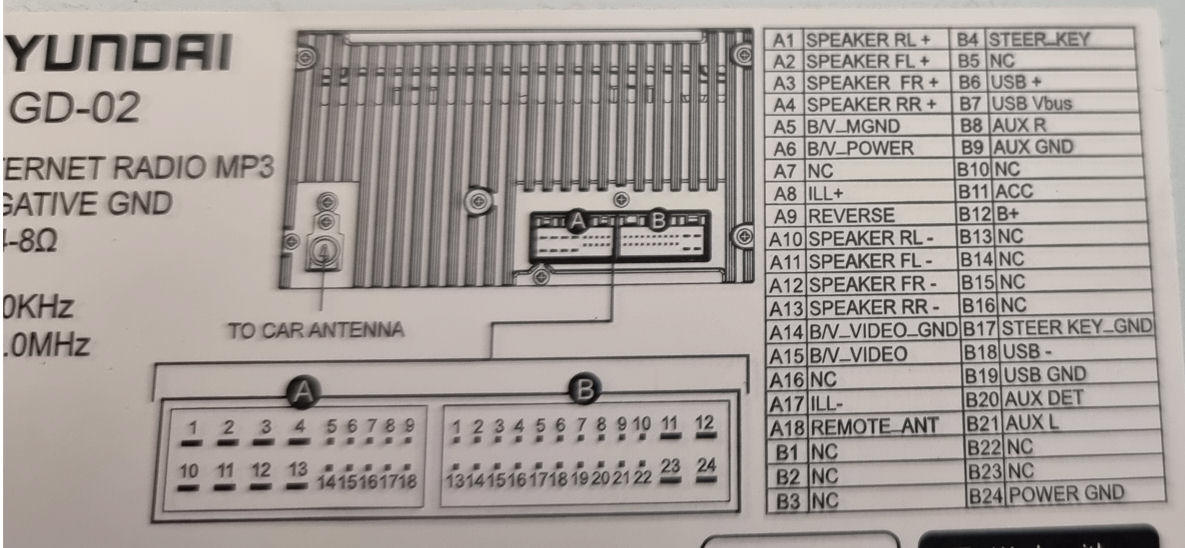

There are 2 ways of looking at it depending if you are looking at the pins or the wires.

Fairly sure it is wiring – so this is looking at the FACTORY wiring

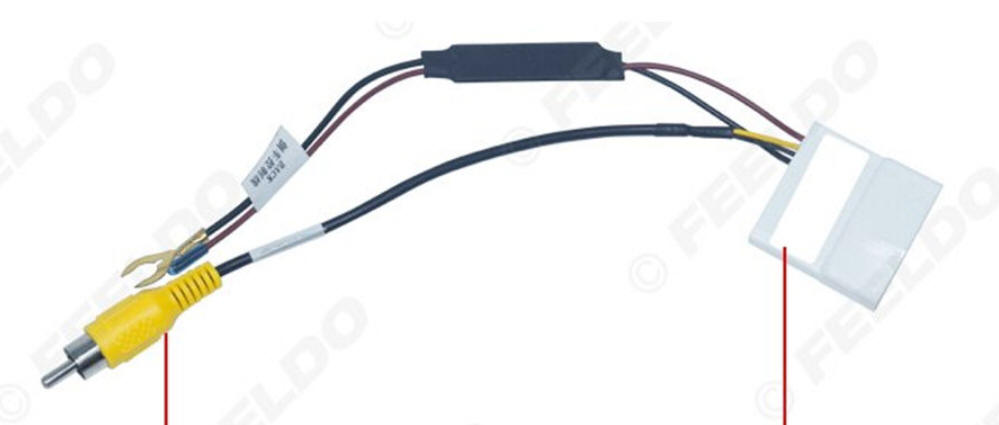

The camera cable you have has a white plug
This white plug is to be cut off – this is the input going into the reducer

Join the red going into the 12V  A9.
Join the Reversing wire on the power harness to the unit to the same A6 wire or you can use the same wire going to the input of the camera

The Black is to be connected to B24

1/3^rd  way there
So remember the white plug is the 12V side.


On the 6v side of that wire
Connect the Red or purple or?? to A6
Connect the Black to A5

now you are powering the camera only when in reverse.

now the easy part … the camera

The black is to be connected to A14
the other wire is to be connected to A15

To join the cables you will need 6 of these connectors and a set of pliers


=============

that’s it!!!
